Model:LNK-INJ301-100
Overview

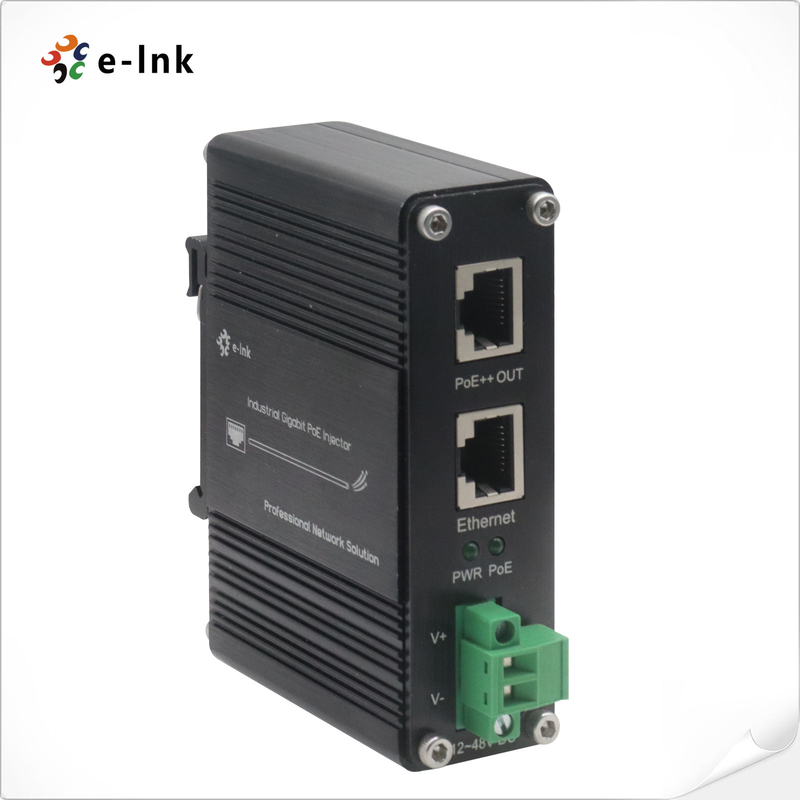

The LNK-INJ301-100 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt PoE++
100W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you
to connect the PoE device such as camera and access point with a non PoE LAN switch within the
distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support
10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 100W PoE output.
Festures
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 100W PoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp
Technical Indexes
| Ethernet | |
| Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| Power over Ethernet: | |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| PoE Budget: |
Up to 100-watt PoE budget (48VDC) Up to 100-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | IP40 Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Standard Accessories | |
| Package Contents | LNK-INJ301-100 |
| User's manual | |
| Wall-mount kit | |
| DIN-mount kit | |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
