Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-2.5G-108P
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Industrial PoE Switch |
Operation Temperature: |
-10℃ To 55℃ |
Weight: |
1.45KG |
Size: |
270 X 181 X 44mm |
Material: |
Metal |
Power: |
110-240V AC |
Key Word: |
Industrial PoE Switch |
Operation Temperature: |
-10℃ To 55℃ |
Weight: |
1.45KG |
Size: |
270 X 181 X 44mm |
Material: |
Metal |
Power: |
110-240V AC |
Industrial PoE Switch Advantages
· 8 x 2.5Gbps PoE Ports
· IEEE802.3af/af Standards
· 1 x 10G SFP+ Fiber Ports
Technical Indexes
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3bz |
| PoE Ethernet Port |
Connector: RJ45 Data rate: 100M/1G/2.5G Cable: CAT6 or higher Distance: ≤100 meter Standards: IEEE802.3af/at Power: Each port≤30W, all ports 120W Max PoE Output: DC 52V±5% PoE Power Pin: 1/2+,3/6- |
| Fiber Port |
Connector: SFP+ Data rate: 10G Wavelength: 850nm/1310nm/1490nm/1550nm Fiber type: Single Mode 9/125μm, Multi Mode 50/125μm,62.5/125μm Distance: 550m ~ 100km |
| Backplane bandwidth | 60Gbps |
Overview

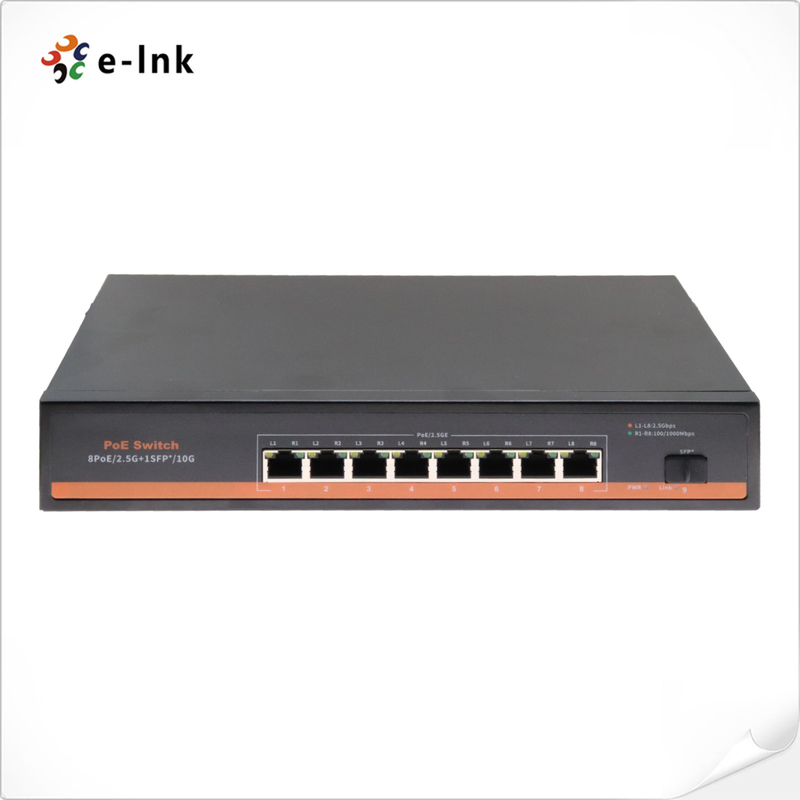

LNK-2.5G-108P Series PoE Switch provides 8 x 2.5G PoE ports and 1 x 10Gigabit SFP+ optical ports, which can directly enjoy 2.5G high-speed
transmission when connected with various 2.5G devices. It adopts the store-and-forward mechanism and integrates high-capacity cache internally,
effectively reducing the data forwarding delay, and all ports can realize non-blocking line-speed forwarding.
Ordering Information
| Model | Description |
| LNK-2.5G-108P | 8x2.5Gbps PoE Ports + 1 x10G SFP+ Fiber Ports PoE Switch |
