Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001,CE,ROHS,FCC
Model Number: LNK-109KVM
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Fiber Extender Standard Package
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Interface: |
LC Connector |
Interface Bandwidth: |
18Gbps |
Transmission Distance: |
OM4 Multimode Fiber: 300M |
Temperature: |
Operating: 0℃ ~ +55℃ |
Dimension (LxWxH): |
93 X 70 X 28(mm) |
The Warranty: |
1-year Free Warranty |
Interface: |
LC Connector |
Interface Bandwidth: |
18Gbps |
Transmission Distance: |
OM4 Multimode Fiber: 300M |
Temperature: |
Operating: 0℃ ~ +55℃ |
Dimension (LxWxH): |
93 X 70 X 28(mm) |
The Warranty: |
1-year Free Warranty |
Model:LNK-109KVM
Overview
The LNK-109KVM Mini 4K/60Hz HDMI 2.0 KVM USB Fiber Optic Extender consists of a transmitter and
receiver unit that extend HDMI 2.0 and USB HID signals over LC OM4 MM fiber optic cables, up to 300
meters (984 feet). This HDMI KVM extender provides UHD 4K 60Hz picture quality with 4:4:4 chroma
sampling to your remote display.
The transmitter uses a distribution chip to split one HDMI input into two outputs: one output uses wavelength-division
multiplexing technology to convert four high-speed differential signals into optical fiber output, while the other
output provides a local HDMI signal. The receiver restores the signal from optical fiber to HDMI output.
Features
► Transmits 4K HDMI2.0 video signals up to 300 meters over OM4 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4
► Transmitter support local loop output

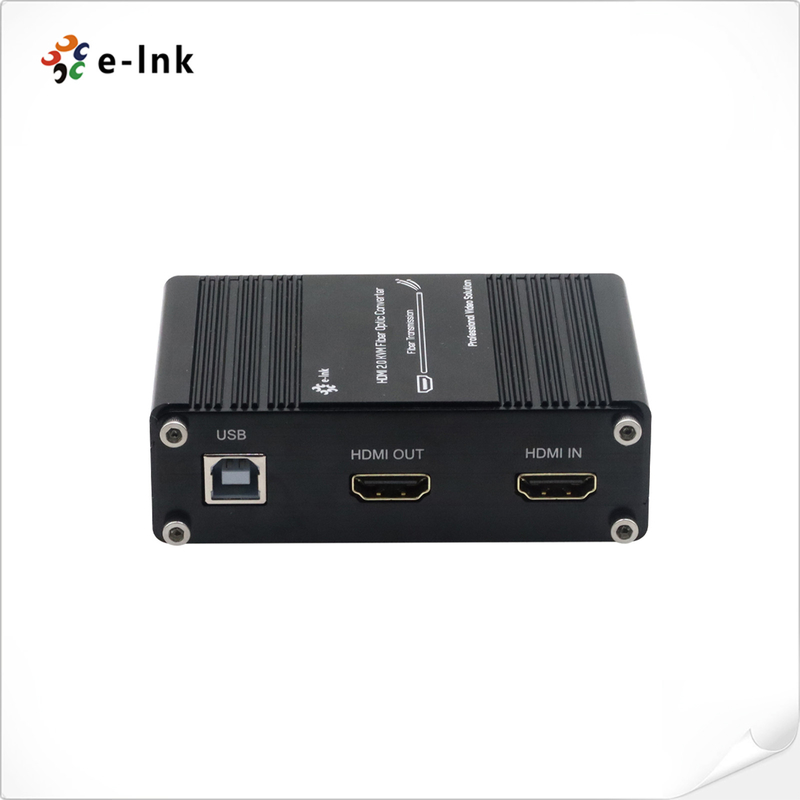

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse,
fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse),
fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Simple to install, plug and play
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 2.0 and HDCP 2.2 |
| Maximum pixel clock | 600MHz | |
| Data speed | 18Gbps(6 Gbps/CH) | |
| Resolution range | 4K@60Hz/4K@30Hz/1080p/720p | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| K/M | Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
| Optical fiber | Interface | LC connector |
| Fiber type | OM4 Multimode | |
| Wavelength | 850nm | |
| Interface bandwidth | 18Gbps | |
| Transmission distance | OM4 Multimode fiber: 300M | |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | TX:＜1.5W; RX:＜1W | |
| Temperature | Operating: 0℃ ~ +55℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 93 x 70 x 28(mm) | |
| Gross weight | 0.25KG | |
| The warranty | 1-year free warranty | |
Application
Ordering Information
| Model | Description |
| LNK-109KVM | Uncompressed Mini 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3/4 Multimode Fiber, LC, 300 meters |
