Model:LNK-D3011 Series
Overview

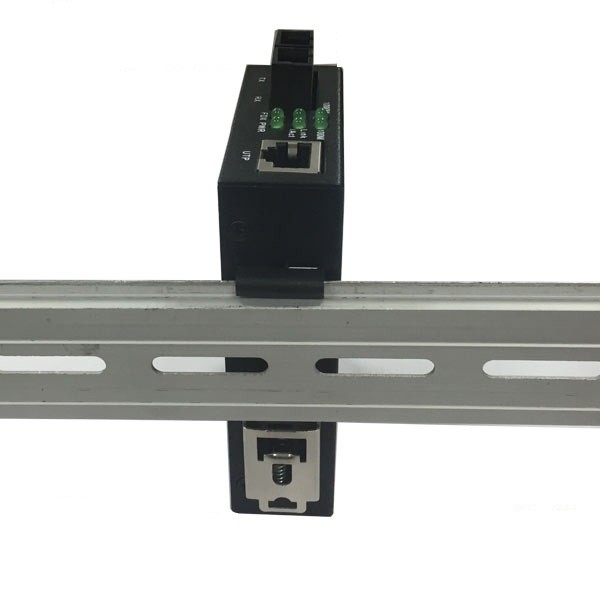

LNK-D3011 Series is a DIN-Rail media converter featuring a clip which allows for easy and safe
attachment and removal from a DIN-rail. LNK-D3011 supports 10/100/1000M Ethernet port and
1000M SC port. Presently it supports two types of media network connections:
10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals
of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX.
It extends the transmission distance of network from 100m via copper cable to 120km via fiber
optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Features
· Convert 10/100/1000Base-TX to 1000Base-X
· Full/Half duplex, Auto-Negotiation
· Single mode or Multi-mode fiber operation
· Single or Dual-core fiber with SC connectors
· MDI/MDI-X Auto Crossover supported
· Plug-and-Play
· DIN-Rail mountable
· 0°C to 50°C (32°F to 122°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3X Flow Control | |
| Processing Type: | Store-and-Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate:: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Cabling: | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above | |
| 1000Base-TX: Cat5 or above | |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 1x RJ45 |
| Optical | |
| Cabling: | 50/125μm or 62.5/125μm (multimode) |
| 9/125μm (Single mode) | |
| Maximum Distance: | Multi-mode: 220m (62.5/125μm)/550m (50/125μm) |
| Single mode: 20/40/60/80/120 Km | |
| Wavelength: | 850nm/1310nm/1550nm |
| Connector | SC |
| Environmental | |
| Operating Temperature: | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | > 100,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 5VDC (DC Socket) |
| Power Consumption: | 2.5W Max. 0.5A@5VDC |
| LED Indicators | |
| Power: | Power Status |
| 10/100/1000TX(Per Port): | Link/Activity, Speed(100M, 1000M), FDX |
| 1000FX (Per Port): | Link/Activity |
| Dimensions (WxDxH): | 71x105 x27mm |
| Weight: | 0.5Kg |
| Casing: | Metal Case |
| Mounting Options: | Wall-mount / DIN-Rail / LNK-R14 2U Rack |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
Application
Ordering Information
| Model | Description |
| LNK-D3011 | 10/100/1000Base-T to 1000Base-F, Mutli-mode, 550m, 850nm, SC, standalone, external power adaptor |
| LNK-D3011-20 | 10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-D3011S-20 | 10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
| Mounting Options: | ► DIN-Rail Mount Bracket; ► Rack-mountable on 2U rack LNK-R14 (Purchase Separately). |
| Power Options: | ►1A/5VDC Power Adapter with DC Jack. ► Power Adaptor is included for all sales. |
