Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC005
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs/month
Keyword: |
Industrial Ethernet Switch |
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
<6W |
Dimensions (WxDxH): |
95 X 70x 29m |
Weight: |
0.25kg |
Mounting Options: |
DIN-Rail / Wall-mount |
Keyword: |
Industrial Ethernet Switch |
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
<6W |
Dimensions (WxDxH): |
95 X 70x 29m |
Weight: |
0.25kg |
Mounting Options: |
DIN-Rail / Wall-mount |

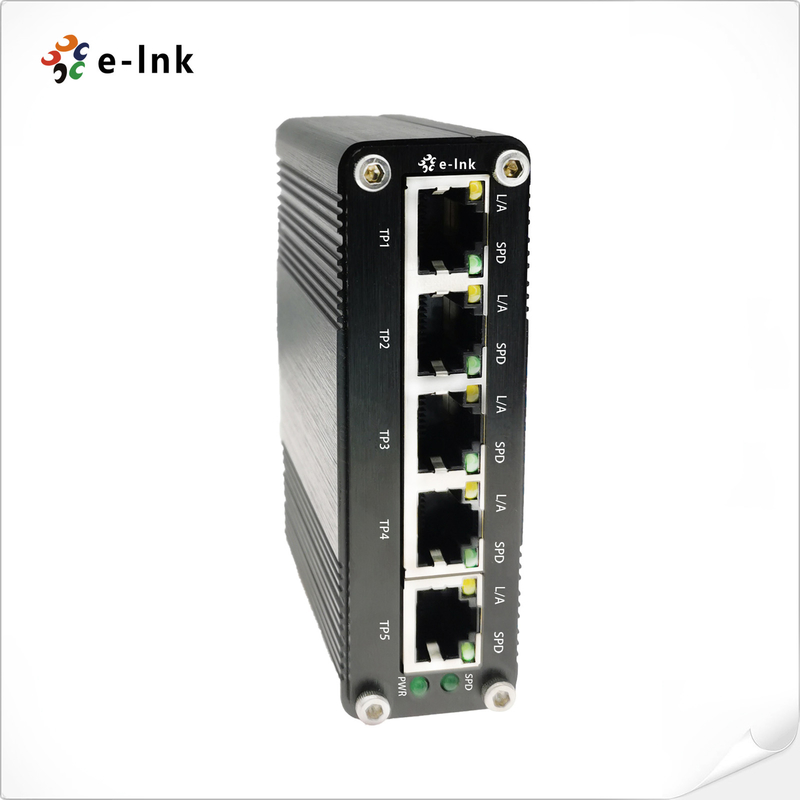

Industrial Ethernet Switch Mini 5-Port 10 / 100M 250g Unmanaged Ethernet Switch
Industrial Ethernet Switch Advantages
► 5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Connector: | 5 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| SPD | Data Rate |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
Overview
LNK-IMC005 Series is a Mini Industrial 5-Port 10/100TX Compact Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC005 | Mini Industrial 5-Port 10/100TX Compact Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
