Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC2X4S8G
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Industrial 8-Port Ethernet Switch With 10G SFP |
Input Power: |
12~57VDC 6-pin Terminal Block |
Copper Port: |
8-Port 10/100/1000T RJ45 |
SFP Port: |
4-Port 1G SFP 2-Port 10G SFP+ |
Installations: |
DIN-Rail And Wall-mount |
Dimensions (WxDxH): |
149 X 114 X 50 Mm |
Keywords: |
Industrial 8-Port Ethernet Switch With 10G SFP |
Input Power: |
12~57VDC 6-pin Terminal Block |
Copper Port: |
8-Port 10/100/1000T RJ45 |
SFP Port: |
4-Port 1G SFP 2-Port 10G SFP+ |
Installations: |
DIN-Rail And Wall-mount |
Dimensions (WxDxH): |
149 X 114 X 50 Mm |

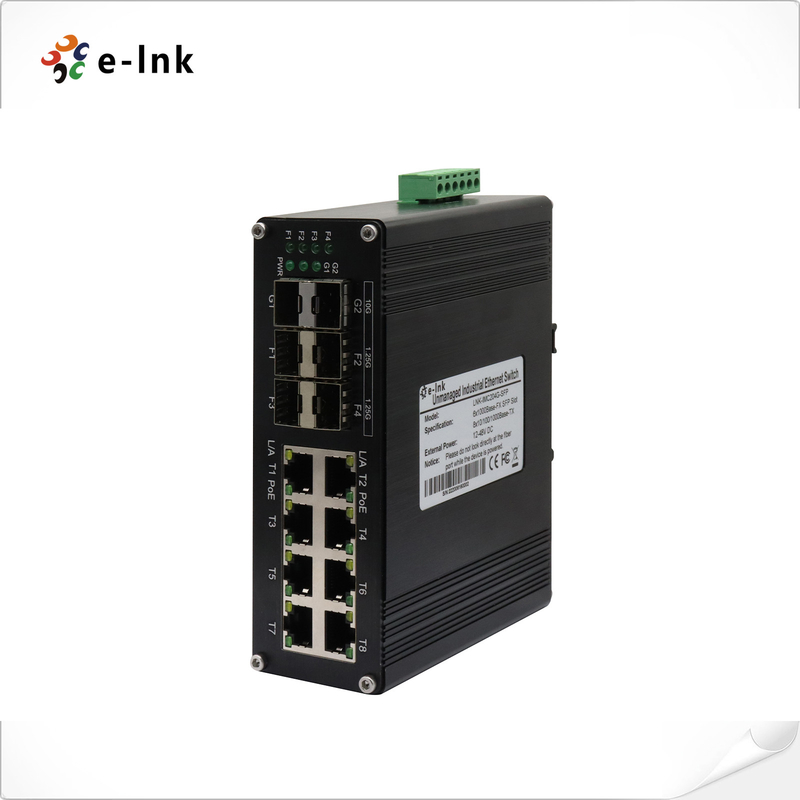

8 Port 10T 100T 1000T RJ45 Industrial Ethernet Switch With 10G SFP
Industrial Fiber Ethernet Switch 8 Port Gigabit DIN Rail Wall Mount
Gigabit Ethernet Switch 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+
8 Port Gigabit Fiber Ethernet Switch Advantages
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 8 Port Copper to 6 Port SFP Network Switch Overview
LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
8 Port 1000Mbps Din Rail Unmanaged Ethernet Switch Technical Indexes
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
Gigabit SFP Port: F1~F4 |
|
10G SFP+ Port: G1, G2 |
|
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|
Weight: |
0.55Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
8 Port Ethernet Network Switch Din Rail Mount Ordering Information
|
Model |
Description |
|
LNK-IMC2X4S8G |
Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
