Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-2300
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD40/PCS
Packaging Details: Ethernet Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Mode: |
10/100Mbps |
Distance: |
20/40km |
RG45 Ports: |
3 |
Input: |
DC5V 2A |
Mode: |
10/100Mbps |
Distance: |
20/40km |
RG45 Ports: |
3 |
Input: |
DC5V 2A |

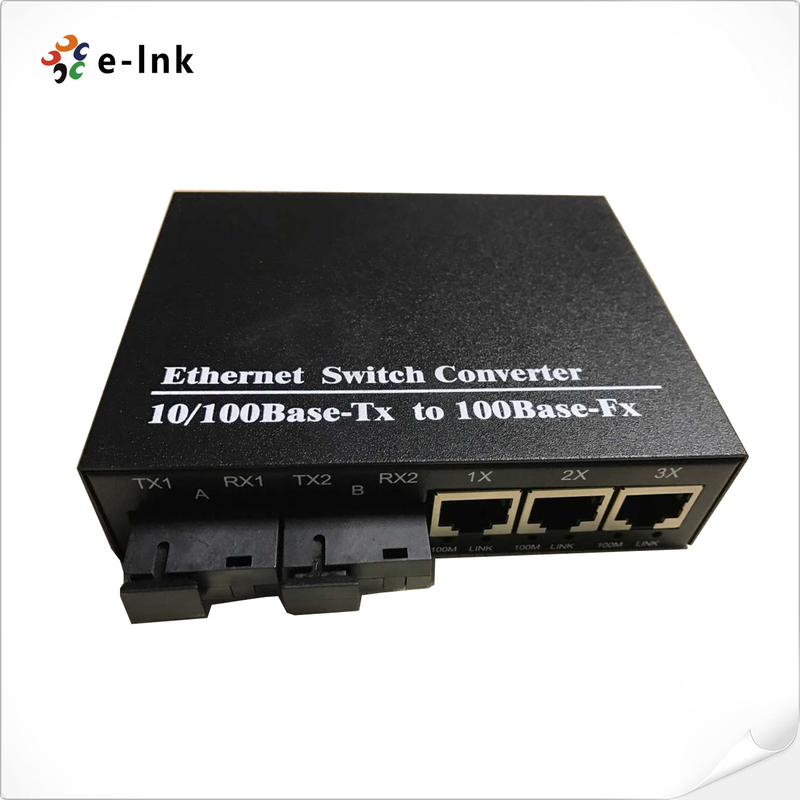

Ethernet Switch 10/100 M Media Converter 3-TX + 2-FX(SFP) Port Fiber Switch
Ethernet Switch Advantages:
Switch Ethernet signals among 10/100M UTP ports (T) and 100M Optical Fiber Interfaces (X)
Supports max 10K bytes frame.
Low power consume (4W)
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | 10/100Base-T and 100Base-FX |
| Wavelength | 1310nm/1550nm |
| Transmission distance |
Multimode Fiber: 50/125,62.5/125μm Category-5 twisted pairs: 100m |
| Port |
3*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2*SC socket |
| MAC address table | 1K |
| Power supply | DC5V 2A (external) |
| Maintaining temperature | -40~70ºC |
LNK-2300 3 port Fast Ethernet Switch with 3 10/100M UTP ports and 2 100M SC sockets, which converting the 2 independent
100Base-TX twisted pair electrical signal with 100Base-FX optical signal. It extends the network transmission range 120Km
Ordering Information
| Item | Description |
| LNK-2300 | 10/100Base-T to 100Base-F, 2 Fx Port + 3 RJ-45 Ports, Multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
| LNK-2300S-20 | 10/100Base-T to 100Base-F, 2 Fx Port + 3 RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-S2300-20 | 10/100Base-T to 100Base-F, 2 Fx Port + 3 RJ-45 Ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
