Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-M3G-1V1D-20
Payment & Shipping Terms
Minimum Order Quantity: 1pairs
Price: negotiate
Packaging Details: SDI Fiber Converter standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pairs/day
Data Type: |
Backward RS485 (optional) |
Operating Temperature: |
-40℃～85℃ |
Storage Temperature: |
-40℃～80℃ |
Power Consumption: |
2 W (Max.) |
Power: |
5-15 VDC |
Optical Transmission Bandwidth: |
270MHz～12GHz |
Dimensions (LxWxH): |
80 X 40 X 20 (mm) |
Data Type: |
Backward RS485 (optional) |
Operating Temperature: |
-40℃～85℃ |
Storage Temperature: |
-40℃～80℃ |
Power Consumption: |
2 W (Max.) |
Power: |
5-15 VDC |
Optical Transmission Bandwidth: |
270MHz～12GHz |
Dimensions (LxWxH): |
80 X 40 X 20 (mm) |
industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Overview

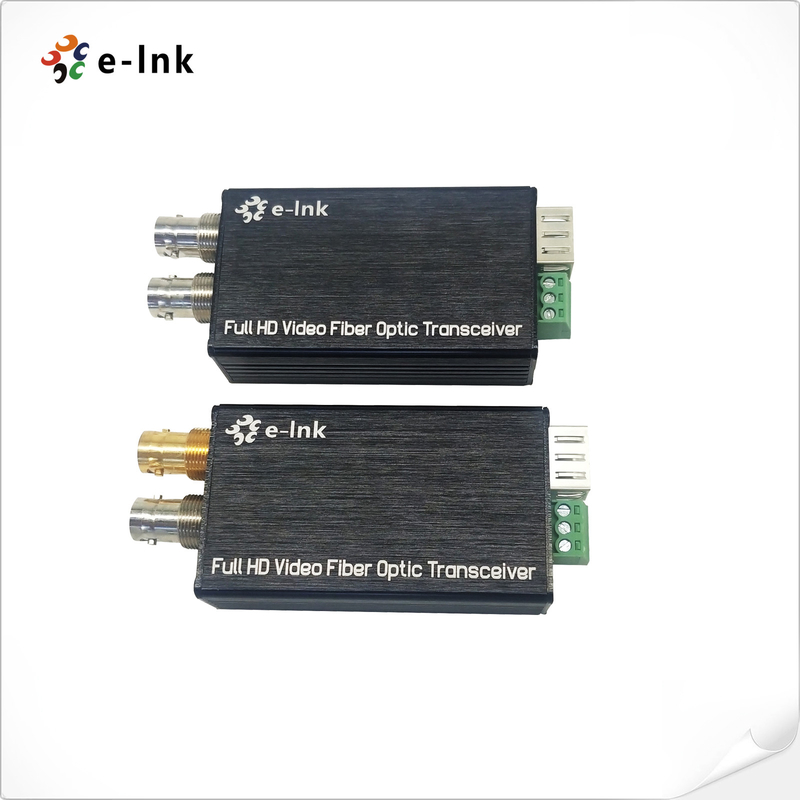

LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video
(audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the
signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes
one transmitter and one receiver for 1080P 3G/HD-SDI signal.
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| 1080P 23.98/24/30/50/60 | |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Data | |
| Physical interface | Industrial standard screw terminal |
| Data type | Tally or Reverse RS485 |
| Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
| BER | <10ˉ9 |
| Electrical | |
| Power adaptor | DC 5~25V |
| Power consumption | <5W |
| LED Indicator | |
| SDI | SDI video |
| P/T | Power Supply |
| Mechanical | |
| Dimensions (LxWxH) | 80 x 40 x 20 mm |
| Weight | 1KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Application
Ordering Information
| Model | Description |
| LNK-M3G-1V1T-MM | Mini-type 3G-SDI to Fiber Converter with Tally and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V1D-MM | Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V1T-20 | Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V1D-20 | Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V1T-40 | Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V1D-40 | Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
