Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INS301-19V
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Keywords: |
PoE Power Splitter |
Output Voltage: |
20W 19VDC |
Mounting Options: |
DIN-Rail / Wall-mount |
Color: |
Black |
Connector: |
RJ45 |
Material: |
Aluminum |
Keywords: |
PoE Power Splitter |
Output Voltage: |
20W 19VDC |
Mounting Options: |
DIN-Rail / Wall-mount |
Color: |
Black |
Connector: |
RJ45 |
Material: |
Aluminum |

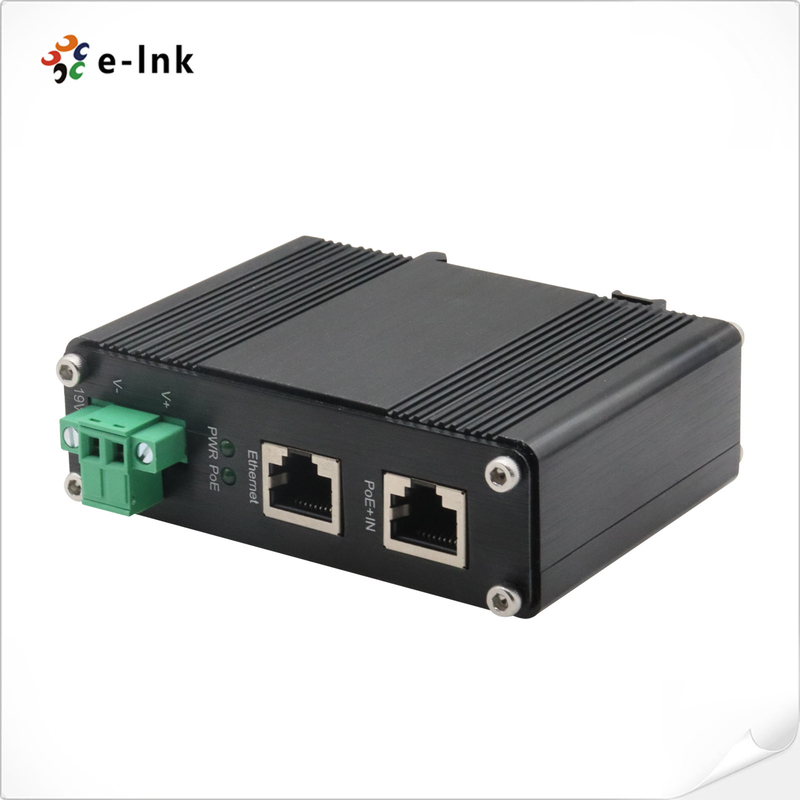

PoE Power Splitter Industrial 10 100 1000Mbps 802.3at 30W Power Over Ethernet 19VDC Output
PoE Power Splitter Advantages
► Splits power and data from PoE Input
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
►Wide operating temperature -40 ~ 80°C
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Interface: | “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| “Data” Out Port: 1 x RJ-45 10/100/1000Base-T | |
| DC Out Plug Connector: 1 removable 2-Pin terminal block | |
| Power over Ethernet | |
| PoE Standard: | IEEE 802.3af/at Power over Ethernet |
| Number of devices that can be powered: |
1 (DC19V) (Vary on device’s power requirement; cannot be over 20 watts.) |
Overview
The data transmission, up to Gigabit speeds, with power output voltages of 19VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS301-19V, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.
Ordering Information
| Model | Description |
| LNK-INS301-19V | Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 20W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
