Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-SPD2400G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Operating Temperature: |
-20℃~70℃ |
Storage Temperature: |
-20℃~95℃ |
Relative Humidity: |
5% To 95% Non-condensing |
MTBF: |
＞30000h |
Operating Temperature: |
-20℃~70℃ |
Storage Temperature: |
-20℃~95℃ |
Relative Humidity: |
5% To 95% Non-condensing |
MTBF: |
＞30000h |

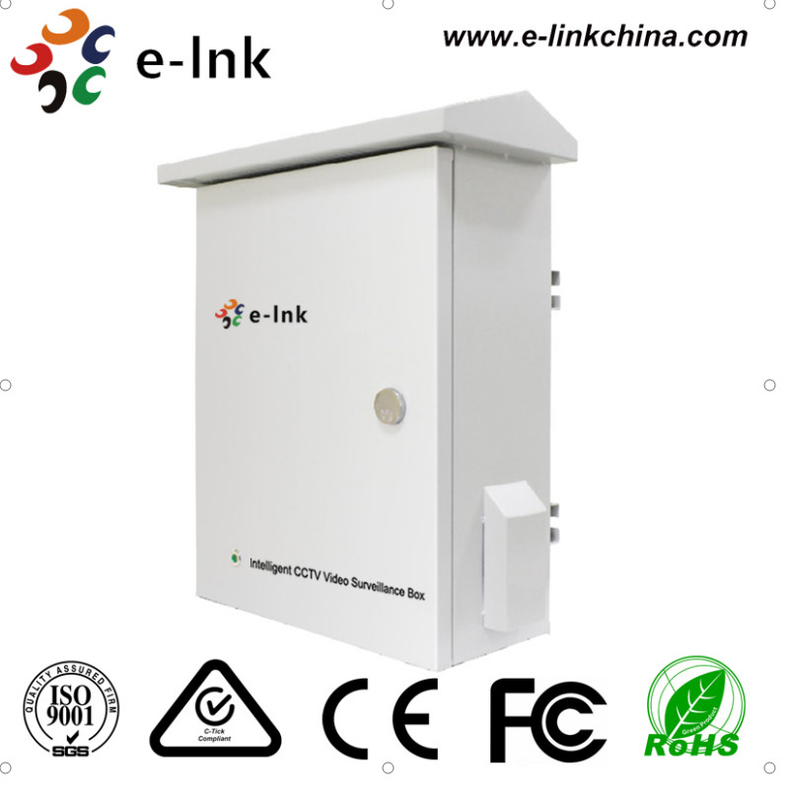

DC48V AC24V Intelligent CCTV Camera Box Video Surveillance Box
Intelligent CCTV Video Surveillance Box
Advantages
· Highly integration
· Modular design with Plug-and-play Built-in Transmission Card ( Ethernet Switches/ Media Converter/ HD-SDI/ EPON/ GPON), easy to manage, maintain and upgrade.
· Flexible deployment, convenient maintenance
· Different flexible Power Supply, DC48V/36V/24V/12V,AC24V Optional
· Standard Wiring: built-in line card, fiber splicing box and cable management grooves, neatness inside.
· Support independent operation, can display temperature, humidity, current and voltage locally
| Power Supply Unit - Centralized Power Supply | ||
| Flexible Power Supply | AC110~220V (Optional) | |
| AC24V (Optional) | ||
| DC48V (Optional) | ||
| DC36V (Optional) | ||
| DC24V (Optional) | ||
| DC12V (Optional) | ||
| Air Switch | Support (Optional) | |
| Circuit Breaker | Support (Optional) | |
| Functions | over-current, over-voltage, short-circuit protection | |
| Power Supply Unit - Automatic Reclosure | ||
| Short-circuit protection | Automatic reclosing leakage protector will cut off within 0.1s to guarantee equipment safety when current exceeds 3 times of rated current. | |
| Electric leakage protection | Leakage initiating current is 30mA. Automatic reclosing leakage protector will cut off by -30m under electric leakage of 15～30mA. | |
| Over-current/overload protection | Automatic reclosing leakage protector will maintain the current duration and value when current exceeds 1.15 times of rated current; | |
| Over-voltage protection | Automatic reclosing leakage protector will cut off if supply voltage exceeds 280V±5V. (It can be adjusted according to user needs.) | |
| Under-voltage protection | Automatic reclosing leakage protector will cut off if supply voltage is less than 150V±5V. (It can be adjusted according to user needs.) | |
| Detection before switching on | Automatic reclosing leakage protector will detect line voltage before switching on. | |
| Automatic reclosure | Automatic reclosing leakage protector will cut off instantly in case of line danger due to transient electric leakage or transient shock (such as thunder or socket arcing, etc) | |
| Manual ON/OFF performance | Zero line shall be disconnected to firing line without output during electric leakage when pressing test key manually; | |
| Data Acquisition and Remote Control | ||
| Detection function of cabinet status |
l Temperature/humidity detection l Cabinet door status detection l Illuminance detection in the Cabinet l Water leakage monitoring of the Cabinet |
|
| Equipment detection functions in the cabinet |
l Fan operation status detection l Status detection of lightning protector l 220V strong current detection l Status detection of circuit breaker |
|
| Remote control function |
l Alarm light brightness control l Fan control l Lighting lamp control l Circuit breaker control |
|
| Fiber Optical Communication Unit | ||
| Fiber | 1~2-Port 100M or 1000M Fiber Port | |
| Ethernet | 4~9-Port 10/100M or 10/100/1000M Ethernet Port | |
| Protocols | TCP/IP, PPPOE, DHCP, ICMP, NAT | |
| Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3u 100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX IEEE 802.3x Flow Control |
|
| Lightning Protection | ||
| Strong protection capability | AC 220V strong current lightning protection module has surge leakage ability of the maximum discharging current, namely, 40kA (8/20us); Network lightning protection has voltage protection level Up: line-earth: 600V; line-line: 25V; It can bear C2:5kV/2.5kA complex wave test. | |
| AC 220V lightning protection unit characteristics | Embedded transient over-current circuit breaker, telecommand alarm connector, invalidation detection indication, overheating circuit breaker, standard modular installation. | |
| Cabinet Unit (Mechanical) | ||
| Material | Cold-rolling plate | |
| Thickness | 2.0mm | |
| Protection level | IP55 | |
| LCD display content | Temperature, humidity, current, voltage | |
| Accessories | Fan, LED lighting lamp, mechanical case door status detection switch, optical fiber fusion splice protector, optical fiber coupler | |
| Installation | Floor-type or Rod-type | |
| Environmental | ||
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| Relative Humidity | 5% to 95% non-condensing | |
| MTBF | > 200,000 hrs | |
| Regulatory Approvals | ||
| ISO9001 | ||
| EN55022:2010+AC: 2011, Class A | ||
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | ||
| EN 61000-3-3: 2013 | ||
| EN55024:2010 | ||
| IEC 61000-4-2: 2008 (ESD) | ||
| IEC 61000-4-3: 2010 (RS) | ||
| IEC 61000-4-4: 2012 (EFT) | ||
| IEC 61000-4-5: 2014 (Surge) | ||
| IEC 61000-4-6: 2013 (CS) | ||
| IEC 61000-4-8: 2009 (PFMF) | ||
LNK-ICB001 series Intelligent CCTV Video Surveillance Box integrates cabinet, front-end information acquisition and remote control, series of sensors, power module, lightning protection, optical fiber communication, automatic reclosure and power control module card. It's easy to manage, maintain and upgrade.
