Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INS901-24V
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Keywords: |
Industrial PoE Power Splitter |
Output Voltage: |
40W 24VDC |
Power Consumption: |
45W Max. |
MTBF: |
>200,000hrs |
Keywords: |
Industrial PoE Power Splitter |
Output Voltage: |
40W 24VDC |
Power Consumption: |
45W Max. |
MTBF: |
>200,000hrs |

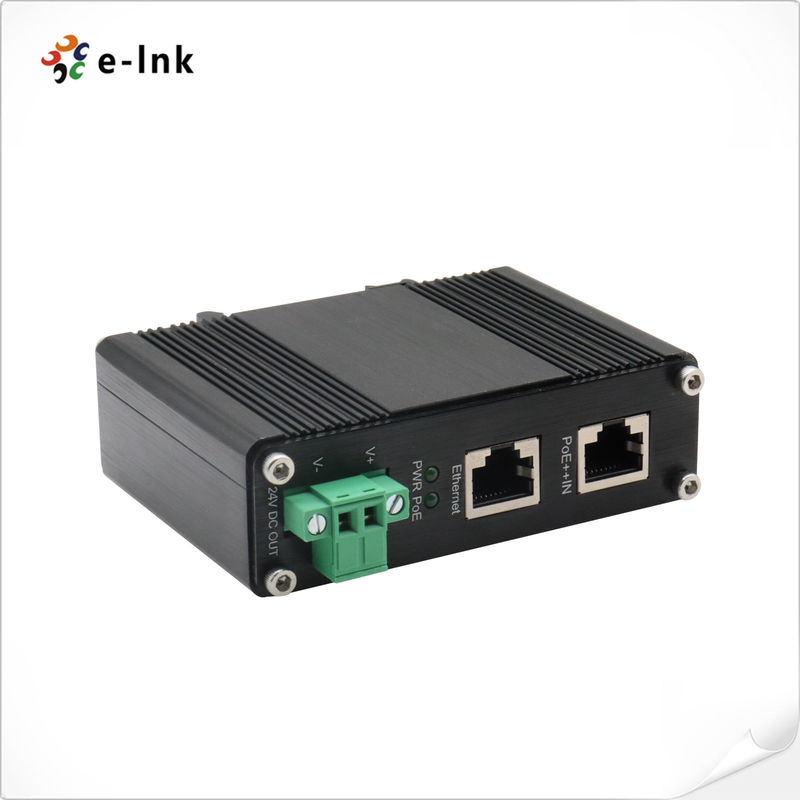

PoE Power Splitter Industrial Gigabit 802.3bt 95W Power Over Ethernet 24VDC Output
PoE Power Splitter Advantages
► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Technical Indexes
| Power over Ethernet | |
| PoE Standard: | IEEE 802.3af/at/bt Power over Ethernet |
| Number of devices that can be powered: |
1 (24VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Power Output: | 40W 24VDC (Terminal Block) |
| Power Consumption: | 45W Max. |
| LED Indicators: | |
| PWR: | 24VDC Power OUT |
| POE: | PoE Power IN |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Overview
The LNK-INS901-24V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with LNK-INJ-48-95W PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 24VDC, run simultaneously up to the Ethernet limit of 100 meters.
Ordering Information
| Model | Description |
| LNK-INS901-24V | Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
