Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-3G8V10GE
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Fiber Interface: |
Simplex LC |
Distance: |
20Km |
Wavelength: |
1310nm/1550nm |
Power Supply: |
100VAC To 220VAC |
Power Consumption: |
<12W |
Weight: |
8KG/pair |
Fiber Interface: |
Simplex LC |
Distance: |
20Km |
Wavelength: |
1310nm/1550nm |
Power Supply: |
100VAC To 220VAC |
Power Consumption: |
<12W |
Weight: |
8KG/pair |

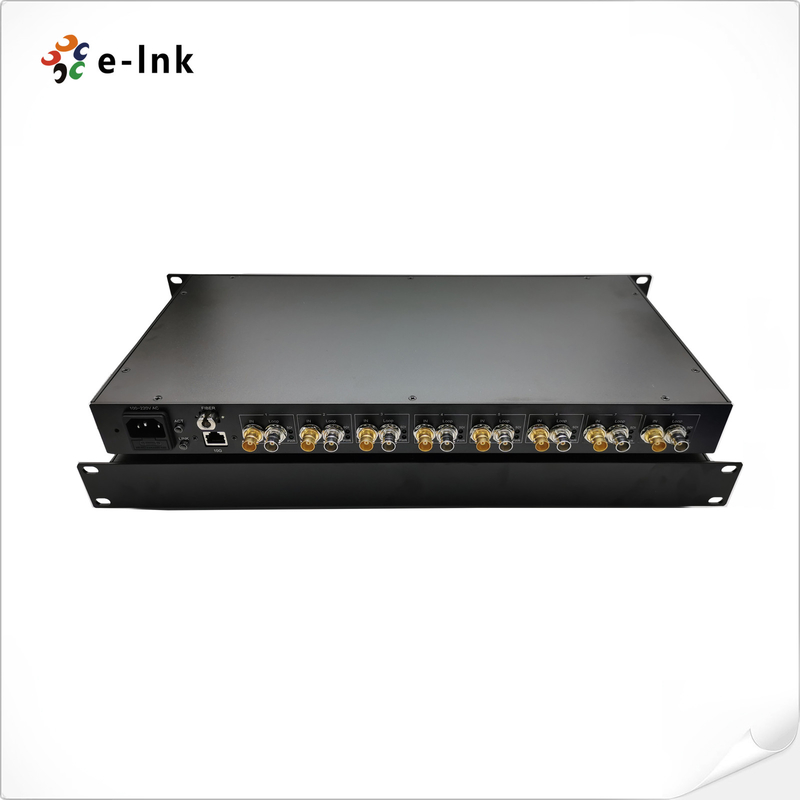

Distance 20Km SDI Fiber Converter 10G Ethernet Over Fiber Extender
8Ch 3G-SDI + 1Ch 10G Ethernet over Fiber Extender
SDI Fiber Converter Advantages
Overview
E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.
Order Information
| Model | Description |
| LNK-3G8V10GE | 8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
Specifications
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Video Input | 8 Channel with Loop Out on TX |
| Video Output | 8 Channel with Loop Out on RX |
| Ethernet | |
| Standards |
IEEE 802.3u 100BASE-TX |
| Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 |
| Working mode | Auto-negotiation by default |
| Electrical | |
| Power Input | 100VAC to 220VAC |
| Power consumption | <12W |
| LED Indicator | |
| PWR | Power Supply |
| SDI 1~8 | 3G-SDI Signal |
| ACT | RJ45 Ethernet Signal |
| LINK | Link Status |
| Mechanical | |
| Dimensions (LxWxH) | 483 x 270 x 45mm (19inch 1U) |
| Weight | 8KG/pair |
| Casing | Metal Case |
| Mounting Options | Rack-mount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
