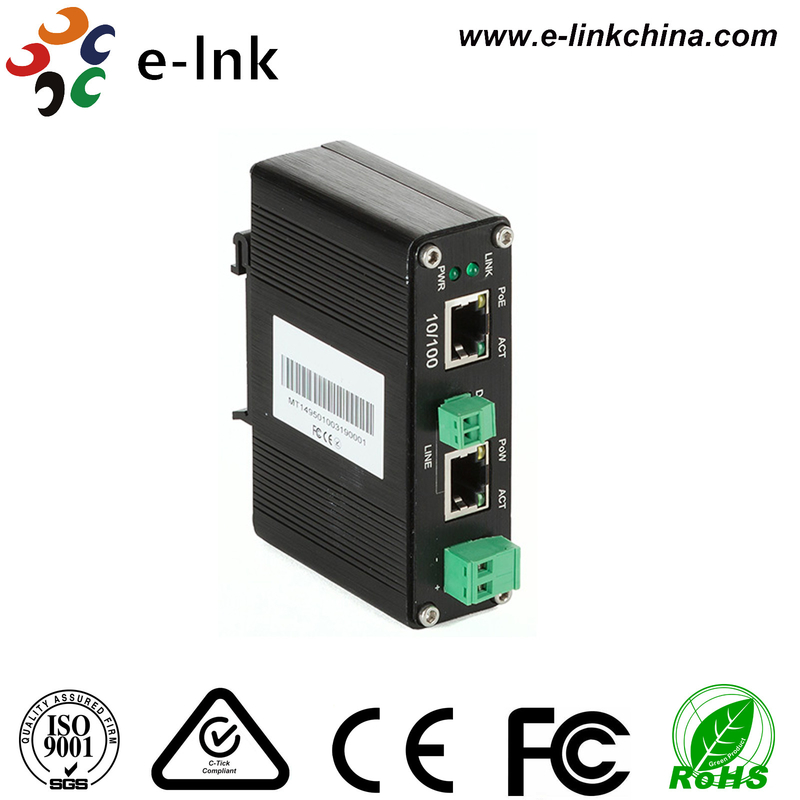

Industrial 10/100Base TX Ethernet Over UTP With PoE PoW Extender
Industrial 10/100Base-TX Ethernet over UTP with PoE+ & PoW Extender
Advantages
► PoE+(30W) and Power over Wire
► IEEE802.3af/802.3at Compliant
► Data Rate up to:90Mbps (Downlink), 90Mbps (Uplink)
► Max.Distance:600m over Cat5e cable
► Accept 48~57VDC external power input or PoE power input from RJ45 port(Receiver side)
► Support DIN-Rail & Wall Mount installation
► -10°C to 60°C (14°F to 140°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Ethernet | |
| Connector | 1 × RJ45 |
| Cabling | Cat5 or above |
| Maximum Distance | 100m |
| UTP | |
| Connector | 1 × RJ45 |
| Cabling | Cat5 or above |
| Distance | Up to 600m on Cast5e Cable |
| Data Rate | |
| Downlink | 90Mbps (Max.) |
| Uplink | 90Mbps (Max.) |
| Technology | Power Line Communication (PLC) |
| Electrical and Mechanical | |
| Input Power |
48~57VDC (Terminal Block) |
| Power Consumption | 8W Max. (PoW not in use) |
| 60W Max. (PoW in use) | |
| Protection | |
| Reverse Polarity | Present |
| Power Input Overload | Present |
| LED Indicators | |
| Power | Power Status |
| Ethernet | SPD, LINK/ACT, PoE (Transmitter) |
| Shielded Twisted Pair | LINK (Transmitter) / READY (Receiver) / PoW (Receiver) / ACT |
| PoE | |
| Standard | IEEE802.3af/at |
| Port | RJ45 |
| Max.Power | 25.5W Max. at RX (Powered Device) |
| 30W Max. at TX (Power sourcing Equipment) | |
| Dimensions (W x D x H) | 114 × 72 × 31 mm |
| Weight | 0.25kg |
| Casing | Aluminum case |
| Mounting Options | DIN-Rail or Wall Mount |
| Environmental | |
| Operation Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -40˚C to 85˚C (-40˚F to 185˚F) |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | > 100,000 hrs |
| Regulatory Approvals | |
| ISO9001 | |
| FCC Part 15 Class A | |
| EN55022 Class A | |
| Surge Protection | |
| RJ45: 1KV | |
| BNC: 2KV | |
| Power: 500V | |
Overview
The LNK-UP1100 Series product provides Ethernet Extension of 1-CH 10/100Base-TX over UTP cable. LNK-UP1100 can extend the distance to 600 meters (with PoE) or 900 meters (no PoE) using a UTP cable. LNK-UP1100 provides a wide operating temperature range from -10°C to 60°C(14°F to 140°F), making it suitable for harsh operating environments.
Ordering Information
| Ethernet over UTP Extender with PoE | |
| Model | Description |
| LNK-UP1100P-T | Transmitter of 10/100Base-TX (PoE+) Ethernet over UTP with PoW |
| LNK-UP1100P-R | Receiver of 10/100Base-TX (PoE+) Ethernet over UTP with PoW |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 76.8W/1.6A 48VDC DIN-Rail Power Supply. |
| ► Power Supply is to be purchased separately | |
| Ethernet over UTP Extender without PoE | |
| Model | Description |
| LNK-UP1100-T | Transmitter of 10/100Base-TX Ethernet over UTP |
| LNK-UP1100-R | Receiver of 10/100Base-TX Ethernet over UTP |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 12W/1 A 12VDC Power Supply |
