Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-IMC208SG-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Connector:: |
8 X RJ45 |
Optical Port:: |
2 X 100/1000Base-X SFP |
Port:: |
RJ45 |
Power Pin Assignment: |
4/5(+), 7/8(-) |
PoE Budget:: |
Up To 240-watt PoE Budget |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Connector:: |
8 X RJ45 |
Optical Port:: |
2 X 100/1000Base-X SFP |
Port:: |
RJ45 |
Power Pin Assignment: |
4/5(+), 7/8(-) |
PoE Budget:: |
Up To 240-watt PoE Budget |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |

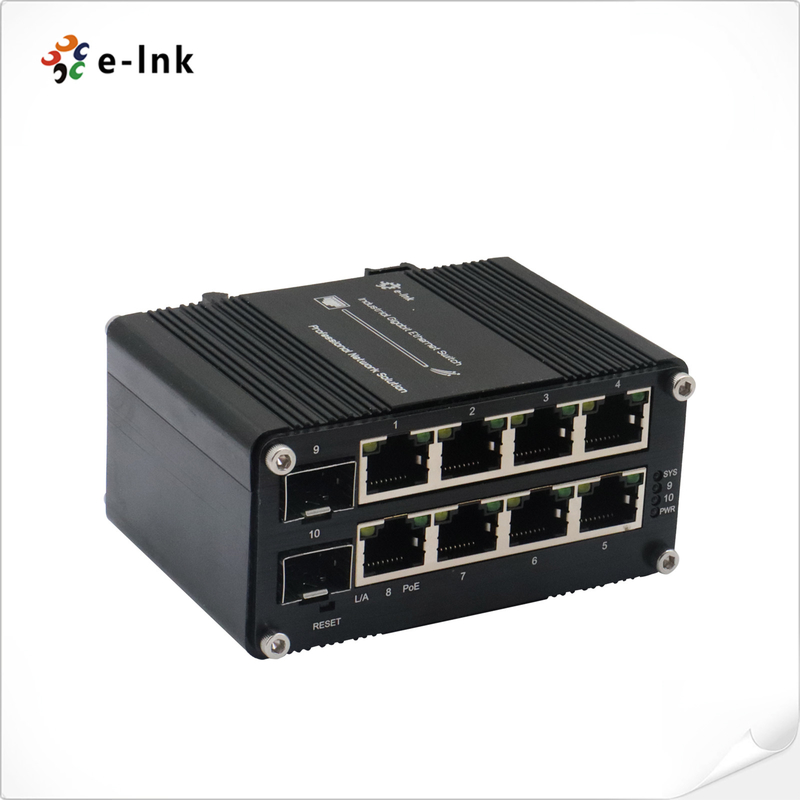

Mini Managed Industrial Ethernet Switch SFP Redundant Power Inputs
Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Overview
LNK-IMC208SG-SFP, a managed industrial network switch, with an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ethernet Switch Advantages
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Supports 802.3x Flow Control
► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
► Support IEEE 802.3D/W/S standard STP/RSTP protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Specifications
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Backplane bandwidth | 20Gbps |
| Packet Buffer Memory: | 9216 bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-X SFP |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| PWR: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): | 95 x 88 x 46 mm |
| Weight: | 300g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Software Features | |
| Redundancy Protocols | Support STP/RSTP |
| Multicast Support | Support IGMP Snooping V1/V2/V3 |
| VLAN | Support IEEE 802.1Q 4K VLAN |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | WEB |
| Security | Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
| Regulatory Approvals | |
| ISO9001, CE, RoHS, FCC | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Order Information
| Model | Description |
| LNK-IMC208SG-SFP | Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
