Product Name: |
3G SDI Optical Extender |
Signal Standard: |
SD-SDI, HD-SDI, 3G-SDI |
Connector: |
SMB |
Fiber Type: |
Single Mode Simplex LC |
CWDM Wavelength: |
1270~1610nm |
Power Supply: |
5VDC 1A |
Dimensions (LxWxH): |
58 X 21 X 20 Mm |
Weight: |
100g/pair |
Casing: |
Aluminum Case |
Working Temperature: |
-20℃～+70℃ |
Product Name: |
3G SDI Optical Extender |
Signal Standard: |
SD-SDI, HD-SDI, 3G-SDI |
Connector: |
SMB |
Fiber Type: |
Single Mode Simplex LC |
CWDM Wavelength: |
1270~1610nm |
Power Supply: |
5VDC 1A |
Dimensions (LxWxH): |
58 X 21 X 20 Mm |
Weight: |
100g/pair |
Casing: |
Aluminum Case |
Working Temperature: |
-20℃～+70℃ |

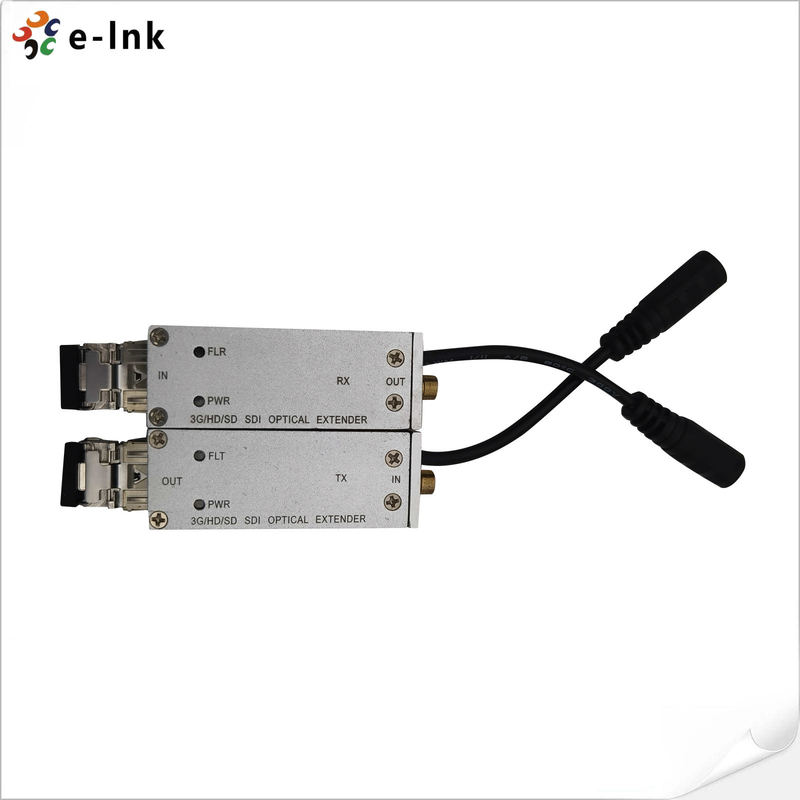

Micro 3G SDI Fiber Optical Extender Single Mode Fiber LC 20KM SMB Connector
3G-SDI Fiber Extender Advantage
► Fully digital lossless transmission, no compression or delay, synchronous transmission of audio and video;
► Broadcast level pathological code;
► Supports one channel of 3G-SDI input and embedded audio synchronous transmission;
► Support bidirectional RS485/RS232 signal transmission;
► Support bidirectional external stereo audio transmission;
► The transmitter supports ring pass output, and the receiver supports dual output;
► Strong compatibility, without selecting signal sources and devices;
► Status indicator LED for real-time monitoring of parameters such as power supply, optical path, video, etc
3G SDI over Fiber Transmitter Receiver Technical Indexes
|
SDI Input |
|
|
Video standard |
SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) |
|
Signal standard |
SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
|
Resolution |
10 Bit |
|
Connector |
SMB |
|
SDI output |
|
|
HD-SDI Jitter |
<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz |
|
SDI Jitter |
<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz |
|
Impedance |
75Ω |
|
Connector |
SMB |
|
Optical Interface |
|
|
SFP |
Simplex LC, 3,125Gbps. ≤120km transmission distance |
|
Standard SM wavelength |
1310nm, 1550nm |
|
CWDM wavelength |
1270~1610nm, 20nm grid according ITU-T |
|
Temperature range |
0~70˚C |
|
Electrical |
|
|
Power |
5VDC, 1A |
|
Consumption |
<5W |
|
LED Indicator |
|
|
FLT |
Fiber link status (Transmitter) |
|
FLR |
Fiber link status (Receiver) |
|
PWR |
Power status |
|
Mechanical |
|
|
Dimensions (LxWxH) |
58 x 21 x 20 mm |
|
Weight |
100g/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
3G-SDI Video Fiber Converter Ordering Information
|
Model |
Description |
|
LNK-M3G-SMB1V-20 |
SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs |
Video
