Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-SP15WG
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: PoE Splitter Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pcs per month
Product Name: |
PoE Power Splitter |
Data Rate: |
10/100/1000 Mbps |
Power Input: |
38～56V DC |
DC Out: |
5V 3A |
PoE Standard: |
IEEE 802.3af/at |
Working Temperature: |
-20°～55°C |
Product Name: |
PoE Power Splitter |
Data Rate: |
10/100/1000 Mbps |
Power Input: |
38～56V DC |
DC Out: |
5V 3A |
PoE Standard: |
IEEE 802.3af/at |
Working Temperature: |
-20°～55°C |

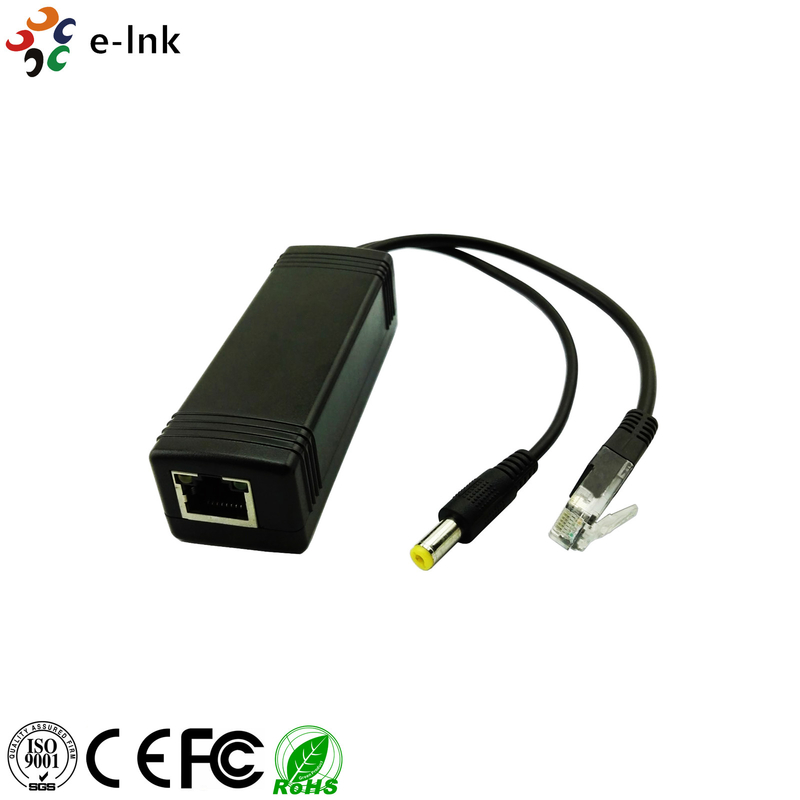

The LNK-SP15WG PoE splitter is developed to help provide power supply for Ethernet applications in scenarios where no POE input is supported.
It supports both “IEEE 802.3af” and “IEEE 802.3at” POE power supplies, and has an output DC of 5V 3A, which can be used to separate POE signals into network signals and electric power.
This PoE splitter is ideal for expanding wireless cities, security monitoring and other PoE practical places, without being restricted by layout of power lines, and its output voltage is 5V.
This DC output provides 5V 3A along with maximum transmission of 150M, when it comes to full copper low resistance network lines. Additionally, it complies to IEEE802.3af/at, and comes with a range of power inputs: DC38～56V.
Moreover, this DC output is equipped with a build-in high performance chip and a high specification circuit board with stable AKros AS1138 and lightning protection for improved reliability. Lastly, the RJ45 full shield port and the unique full bridge design, non polarity input makes it a fantastic buy.
| Model | LNK-SP15WG |
| DC out | 5V 3A |
| Power | 15W |
| distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-TX: cat 5 and above UTP(≤100m) |
| Port | 1 GE(10/100/1000M) POE input+1 Network+1 DC output |
| POE |
IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI |
|
Network protocol |
IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control |
| Environmental |
Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
| Radiation | CE mark,commercial,FCC Part 15 Class B,RoHS |
| Product Size | 250mm*28mm*24mm |
| Weight | 0.2kg |
We are dedicated to providing the most reliable technical support and service for your PoE Power Splitter. Our team of experienced technical support engineers are available to answer any questions you may have.
We understand that getting the most out of your PoE Power Splitter requires knowledge, and we are here to help. Our technical support team is available to provide you with comprehensive answers and solutions to any technical issues you may have.
If you're having any trouble with your PoE Power Splitter, you can contact us via email or phone. Our technical support team will be able to assist you with any technical issues, and provide you with the necessary information to get your PoE Power Splitter up and running in no time.
We strive to provide the best customer service and technical support for your PoE Power Splitter, and we are always looking for ways to improve our service. If you have any feedback or suggestions on how we can better serve you, we'd love to hear from you.
PoE Power Splitters are securely packed in a bubble wrap envelope with a cardboard backing to protect the product during transportation.
Shipping times may vary depending on the destination. We offer worldwide shipping and aim to deliver orders within 3 to 5 working days.
| Model | Description |
| LNK-SP15WG | PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 15 watts, DC output 5V 3A |
