Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-POE-2P
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: PoE Splitter Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pairs per month
Product Name: |
Industrial PoE Splitter Injector Kit |
Data Rate: |
10/100 Mbps |
Network Cable: |
T IA/EIA 568 Cat. 5 |
Ethernet Cable Connector: |
RJ45 |
Dimensions: |
210 X 19 X 19 Mm |
Operating Temperature: |
0°C - 40°C |
Product Name: |
Industrial PoE Splitter Injector Kit |
Data Rate: |
10/100 Mbps |
Network Cable: |
T IA/EIA 568 Cat. 5 |
Ethernet Cable Connector: |
RJ45 |
Dimensions: |
210 X 19 X 19 Mm |
Operating Temperature: |
0°C - 40°C |

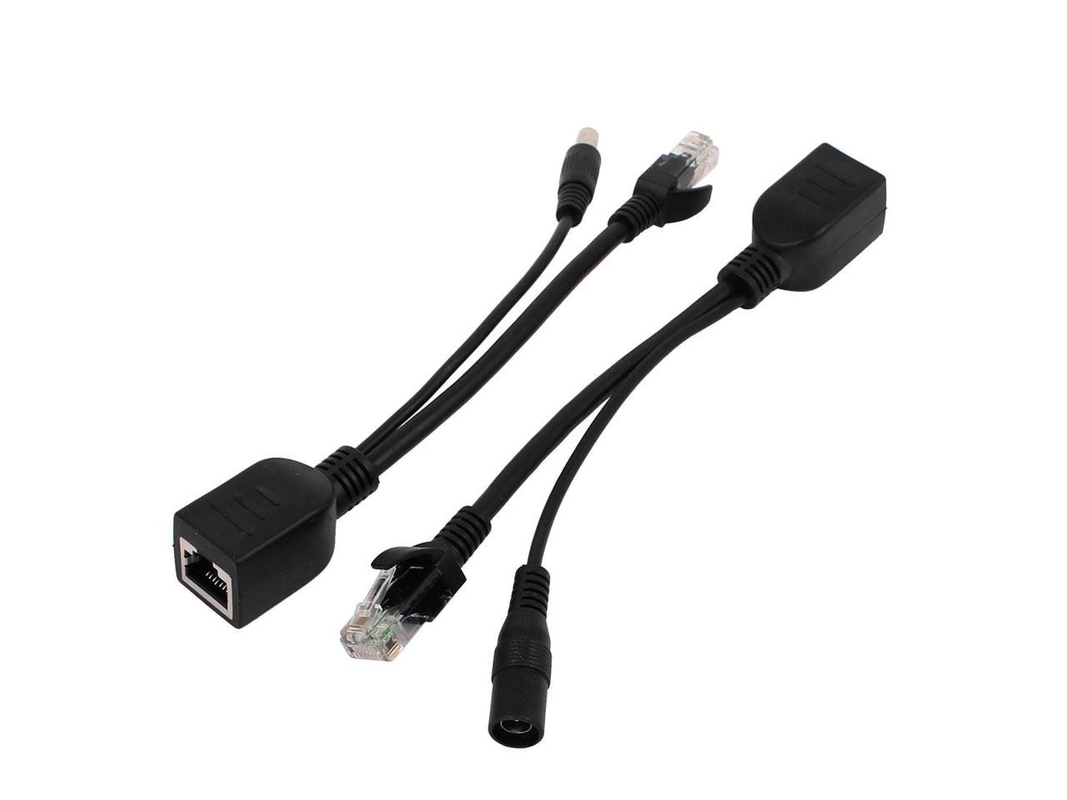

The LNK-POE-2P is a passive Power over Ethernet kit, consisting of a splitter and an injector. This kit allows you to make use of PoE applications with a highly convenient and cost-effective method. You don’t have to worry about where to find a power outlet when setting up your AP or IP camera. This kit uses the power adapter shipped with your network device and doesn’t require a dedicated PoE power adapter.
The Passive PoE Splitter + Passive PoE Injector is designed for easy installation for various PoE applications such as Access Points, Customer Premise Equipment (CPE), IP Cameras (IPCam) and IP Phones. This injector is equipped to accept power supply from powered devices up to 57V voltage input.
The Passive PoE Injector simplifies the installation of the connected powered device by eliminating the need to install a direct power supply in the cable. It accepts the input voltage from the powered device, and adapts it into the required voltage for the remote device. It reduces the wiring complexity of the PoE setup, thereby making it easier to install the powered device without involving complicated wiring.
The Passive PoE Splitter + Passive PoE Injector is the perfect solution for low power consuming devices such as wireless access points, IP Cameras and IP Phones. It provides reliable connection with minimal power losses, making it the ideal power solution for PoE applications.
This product has an interface of data pins numbered 1, 2, 3, and 6, as well as power pins numbered 4, 5, 7, and 8 that have a range of voltage from 12 to 57 volts. It is made from PVC and is compatible with a T IA/EIA 568 Cat. 5 network cable, with an Ethernet data rate of 10/100 megabites per second, a RJ-45 Ethernet cable connector, an operating temperature of 0°C to 40°C (32°F to 104°F), a storage temperature of -40°C to 70°C (-40°F to 158°F), an operating humidity of 10% to 80% (non-condensing), a storage humidity of 5% to 90% (non-condensing), a product weight of 55 grams, and dimensions of 210 x 19 x 19 millimeters (L x W x H).
PoE Power Splitter Technical Support and Service
We offer technical support and service for our PoE Power Splitter product. Our support team has a wealth of experience and knowledge that can help you troubleshoot any issue that may arise. We understand the importance of having a reliable and efficient product and are here to ensure that you get the most out of your PoE Power Splitter.
We are available 24/7 to answer any questions you may have and provide technical support and assistance. Our customer service agents will be able to guide you through any difficulties that may arise. We can help troubleshoot any issues you may have with your PoE Power Splitter and provide advice on how to best use the product. If necessary, we can also provide replacement parts and accessories.
If you need help, please don't hesitate to contact us. We are here to help and provide you with the best possible service.
PoE Power Splitter is packaged in a cardboard box with the following dimensions:
The product is shipped via Express, Air, Sea with tracking information provided.
| Item | Description |
| LNK-POE-2P | Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector |
