Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-P1200
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Powerline Ethernet Adapter Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
Powerline Ethernet Adapter |
Data Rate: |
Up To 1.2Gbps |
Power: |
110-240V AC |
Modulations: |
OFDM,FEC,Flexible Frequency Configuration |
Storage Temperature: |
-10℃~70℃ |
Dimensions: |
145*70*43 (mm) |
Product Name: |
Powerline Ethernet Adapter |
Data Rate: |
Up To 1.2Gbps |
Power: |
110-240V AC |
Modulations: |
OFDM,FEC,Flexible Frequency Configuration |
Storage Temperature: |
-10℃~70℃ |
Dimensions: |
145*70*43 (mm) |

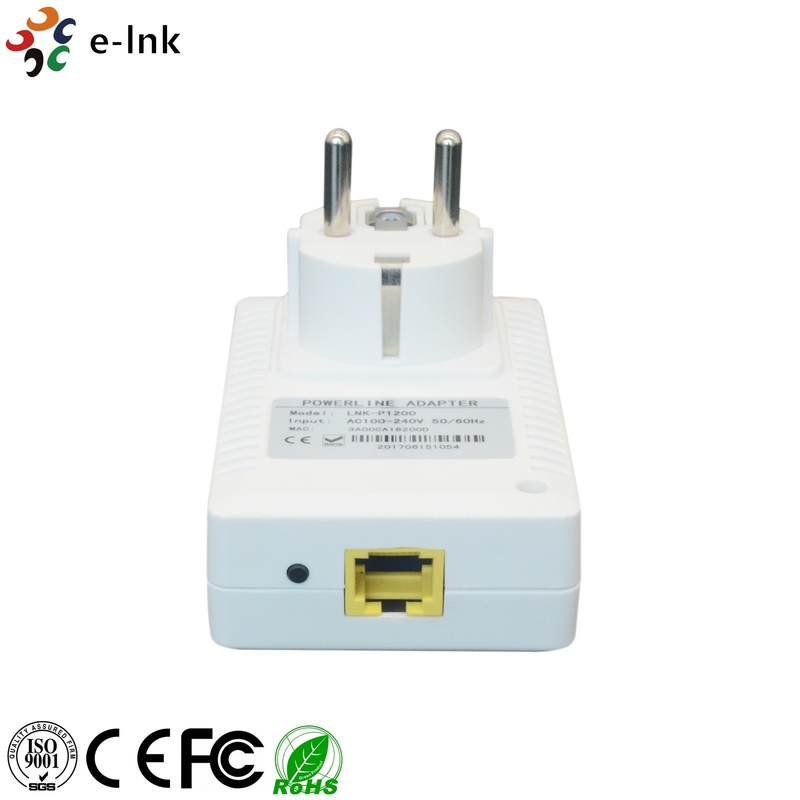

The E-LINK LNK-P1200 uses the HomePlug AV2 standard to offer maximum transmission speed of up to 1200Mbps. You can set up a network through the existing power line of your home easily - just plug it into any socket and the device's strong anti-interference ability enables it to avoid interference from electric devices. Moreover, the device is compatible with IEEE1901 devices and utilizes the MIMO technology that helps upgrade power line communication speed and quality, and prioritize flux for improved multimedia streaming quality, such as HD videos, high speed network linking, VOIP flux and enhanced QOS functions.
Additionally, the device also features 128-bit AES data encryption and key management technology to guarantee the safety of data transmission, and you can configure the encryption mode easily by just pressing a button, without any extra settings.
Utilizing HomePlug AV2, the maximum transmission rate reaches up to 1200Mbps.
Through the implementation of MIMO technology, a greater bandwidth is available and the data transmission is much more stable.
No wiring is necessary and there is no need for specific setting.
QOS technology also guarantees the smooth flow of streaming media.
In terms of security, hardware-based or software-based encryption can be optionally adopted.
Being sub-compatible with IEEE1901 and HomePlug AV, the multiple LED display light colors can be used to monitor the transmission quality.
Energy saving is also one of its advantages.
Meanwhile, remote management and automatic upgrade can also be realized with the help of TR-069.
| Interface | 1* 10/100/1000Mbps self-adaption RJ-45 port. |
| LED display lights |
Ethernet light (ETH) PLC communication status (ACT) Power light (PWR) |
| Ethernet |
IEEE802.3 10/100/1000MbpsBaseT auto-sense Auto rate and duplex negotiation MDI/MDX support |
| Modulations | OFDM,FEC,Flexible frequency configuration |
| Data Rate | Up to 1.2Gbps |
| Management |
HTTP Web-based;firmware upgrade via TFTP TR-069 Supported(Optional) |
| Security | AES 128 bits encryption ensures total data security |
| Networking Protocols |
802.1D Ethernet Bridge 802.1Q VLAN Quality of Service(QoS) IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping |
| Power |
110-240VAC 50Hz/60Hz Auto power saving mode max 0.5W(in standby mode) |
| Environment Connection |
Operating temperature:0-40 degrees Celsius Relative humidity:8-95%(non-condensing) |
| Certifications | FCC,CE calssB, WEEE,RoHS, ITU-T G.hn Standard |
| Size | 145*70*43(mm) |
| Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
At E-link, we are committed to providing the best technical support and service for our Ethernet switch products. Our team of experienced engineers and technicians are available to answer your questions and provide guidance for any technical issues.
Our technical support services include:
If you have any questions or concerns, please contact our technical support team for assistance.
Ethernet switches should be packaged according to the following guidelines:
When shipping an Ethernet switch, it is important to follow these guidelines:
| Item | Description |
| LNK-P1200 | 1200Mbit HomePlug AV Powerline Mini Adapter |
