Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-1200MH-POE
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Powerline Adapter Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
PoE Powerline Adapter |
Access-Method: |
OFDM |
Powerline Connector: |
EU, UK, AU And US |
Transfer Rate: |
1200Mbps |
Network Connector: |
1x RJ45 10/100Base-TX |
Operating Temperature: |
0 ~ 70 °C |
Product Name: |
PoE Powerline Adapter |
Access-Method: |
OFDM |
Powerline Connector: |
EU, UK, AU And US |
Transfer Rate: |
1200Mbps |
Network Connector: |
1x RJ45 10/100Base-TX |
Operating Temperature: |
0 ~ 70 °C |

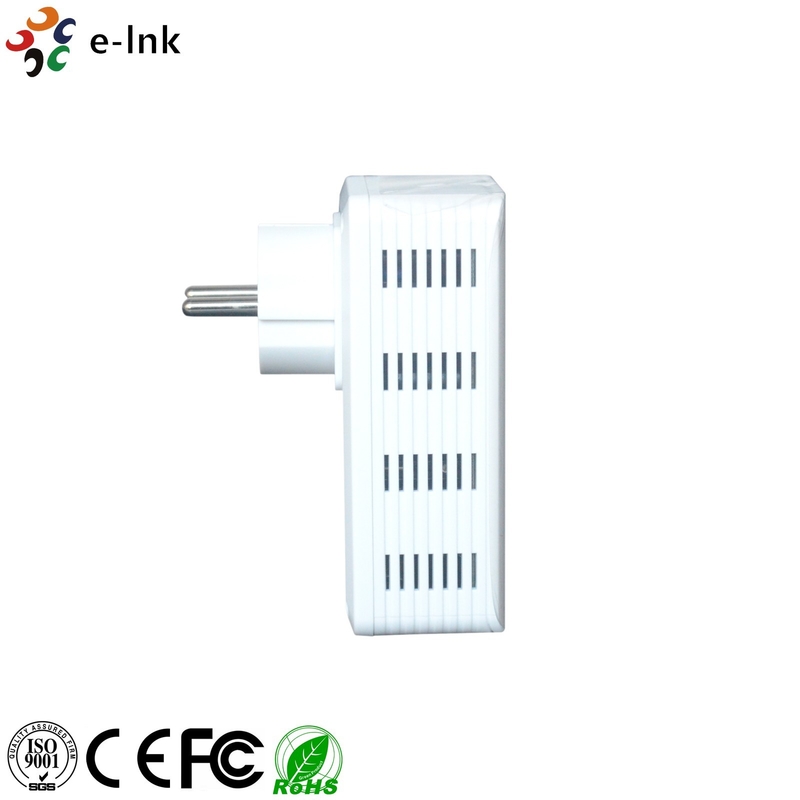

The LNK-1200MH-POE Smart Link HomePlug AV2 1200Mbps Ethernet Adapter proposes a new wire-free way of data transfer. This device turns any powerline in your home into a full-on network infrastructure. The adapter includes a SmartLink Plus function that links to the line-neutral pair, as well as the line-ground pair of the AC power. With this feature, it effectively reduces "dead spots" and improves the speed and coverage of networks in a home.
This adapter can reach speeds of up to 1Gbps when surfing the Internet or transferring data, employing powerlines as its form of communication. Additionally, it contains a built-in PoE Injector that provides 55V/48V classification power via either a CAT5E or CAT6.
You can easily transfer data over your existing household power supply with the High-Speed powerline adapter with Ethernet interface. It is capable of delivering fast transfer rates up to 1200Mbps, letting you stream video in DVD quality without any need for installing new wires! This adapter also supports up to 500 meters range, making it easy and convenient to connect PCs and other devices. Moreover, it is fully compliant with IEEE802.3/802.3u,IEEE802.3at/af HomePlugAV/HomePlugAV2 standards, provides 128-bit AES link encryption, 55V power for PoE PD over CAT5e / CAT6, and IEEE 802.3at /af compliant Midspan or Endpoint (Option) PSE. All of these features make the high-speed powerline adapter both simple to plug and install!
| Parameter | Specification |
| Transfer rate (PHY): | 1200Mbps |
| Range: | up to 500m |
| Frequency Band | 2~68 MHz |
| Access-Method: | OFDM |
| Powerline Connector: | EU, UK, AU and US |
| Network Connector: | 1x RJ45 10/100Base-TX |
| Encoding: | 128Bit AES-Encryption with key management |
| LED-Displays: | PLC (PLC signal light) |
| ACT | |
| PWR (power light) | |
| ETH (Ethernet light) | |
| PoE (POE light) | |
| Power supply: | 100~240 VAC, 50/60 Hz |
| Power over Ethernet: | PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W |
| Power consumption: | 3.9 watts without PoE terminal, 35 watts maximum |
| Supported Standards: |
IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3af IEEE 802.3at Auto MDI / X HomePlug AV2 |
| Operating Systems: | Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems |
| Housing: | Plastic housing |
| Environment: | Temperature in use: 0 ~ 70 °C |
| Humidity in use: 10% ~ 85% (non condensing) | |
| Temperature storage: -20 ~ 70 °C | |
| Humidity storage: 5% ~ 90% (non condensing) | |
| Mark: | CE |
| Dimension: | 105 x 60 x 37 mm (LxWxH) |
| Weight: | 180 grams (only adapter) |
| 500 grams (incl. accessories and packaging) | |
| Package contents: | 1x PoE Powerline Adapter |
| 1x RJ45 patch cable 1.5m | |
| 1x CD-ROM with manual & software |
Ethernet switch products are packaged securely in an appropriate material for safe transport. The product is then shipped to the customer via a reputable delivery service. The customer is provided with a tracking number in order to monitor the progress of the delivery.
| Item | Description |
| LNK-1200MH-POE | 1200Mbps HomePlug AV Powerline Adapter with PoE Injector, IEEE802.3af/at, PoE Power: 30W |
