Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: LNK-IMC005
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Industrial Ethernet Switch standard export package
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/month
Packet Buffer:: |
512K Bits |
Casing:: |
Aluminum Case |
Packet Length:: |
2046bytes |
Mounting Options:: |
DIN-Rail / Wall-mount |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Packet Buffer:: |
512K Bits |
Casing:: |
Aluminum Case |
Packet Length:: |
2046bytes |
Mounting Options:: |
DIN-Rail / Wall-mount |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |

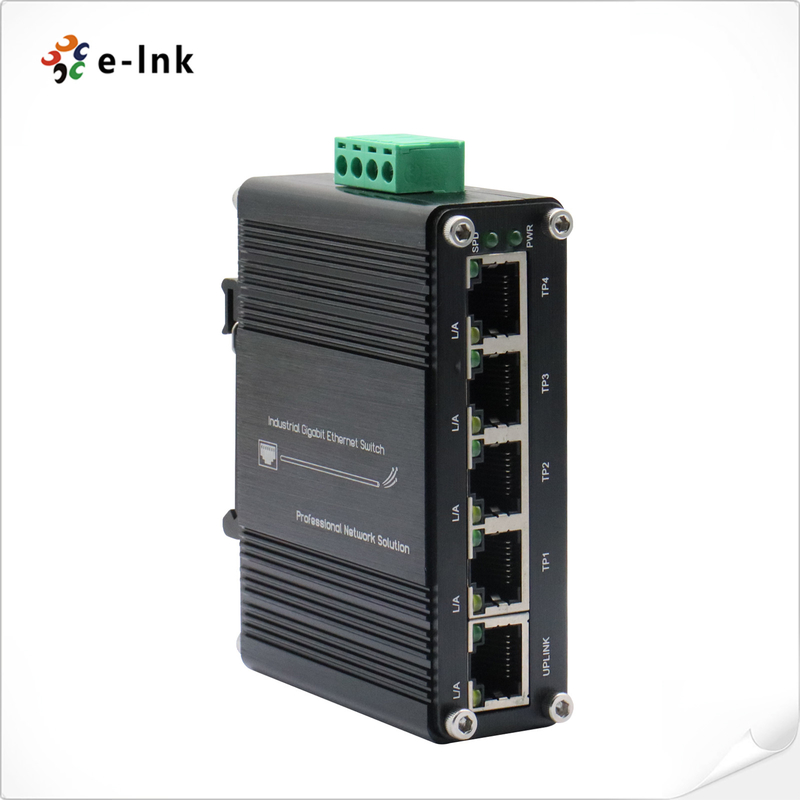

Mini Industrial 5-Port 10/100TX Compact Ethernet Switch
Mini Industrial 5-Port 10/100TX Compact Ethernet Switch Advantages
► 5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC005 Series is a Mini Industrial 5-Port 10/100TX Compact Ethernet Switch with 12~48VDC wide
range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial
standards. With reliable and simple operation against vibration and shock, and wide operation temperature
range, it could match a variety of harsh environment. The switch complies with CE and FCC standards,
and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good
choice for an economical solution for industrial Ethernet connections.
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer: | 512K bits |
| Packet Length: | 2046bytes |
| MAC Address Table: | 2K |
| Switch Fabric: | 1Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
Application
Ordering Information
| Model | Description |
| LNK-IMC005 | Mini Industrial 5-Port 10/100TX Compact Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
