Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: LNK-IMC005G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Industrial Ethernet Switch standard export package
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/month
Packet Buffer:: |
1Mbits |
Casing:: |
Aluminum Case |
Packet Length:: |
10Kbytes |
Mounting Options:: |
DIN-Rail / Wall-mount |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Packet Buffer:: |
1Mbits |
Casing:: |
Aluminum Case |
Packet Length:: |
10Kbytes |
Mounting Options:: |
DIN-Rail / Wall-mount |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Mini Industrial 5-Port Gigabit Ethernet Switch
Mini Industrial PoE Switch Advantages
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Optional
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC
wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical
industrial standards. With reliable and simple operation against vibration and shock, and wide operation
temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC
standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.
It is a good choice for an economical solution for industrial Ethernet connections.

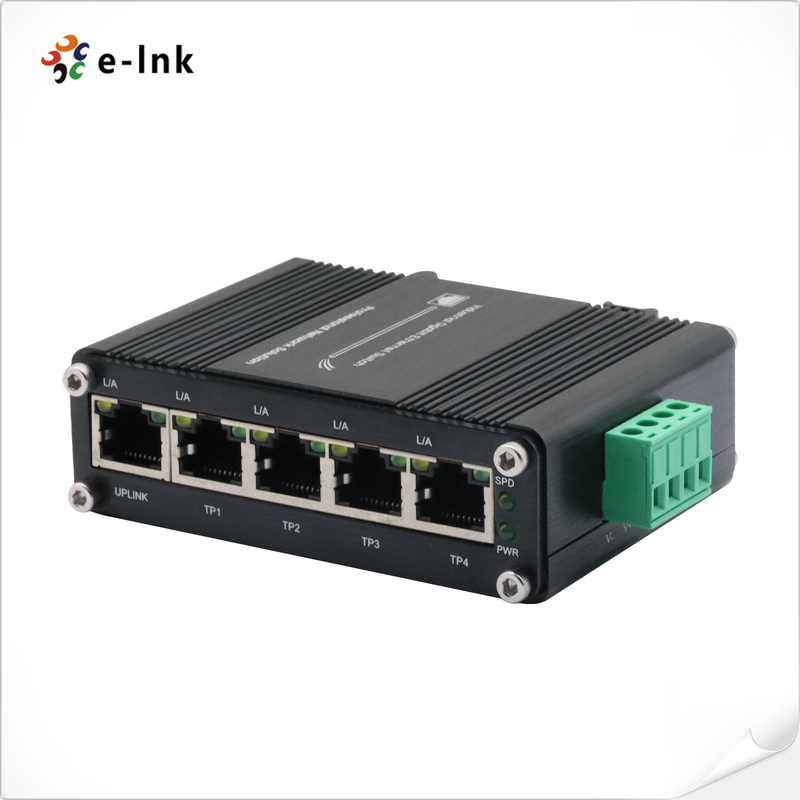

Mini Industrial PoE Switch Picture
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3af/at Optional | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W (PoE In Use: <125W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
Application
Ordering Information
| Model | Description |
| LNK-IMC005G | Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
