Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-12GSDI-1V2R1GE Series
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiate
Packaging Details: SDI Fiber Extender Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Input: |
1 X 12G-SDI On BNC |
Output: |
2 X FC Optical Fiber |
Power Consumption: |
6 W (Max.) |
Energy Input: |
12 VDC |
Temperature Range For Storage: |
-40℃～85℃ |
Dimensions (LxWxH): |
117 X 80 X 24 (mm) |
Input: |
1 X 12G-SDI On BNC |
Output: |
2 X FC Optical Fiber |
Power Consumption: |
6 W (Max.) |
Energy Input: |
12 VDC |
Temperature Range For Storage: |
-40℃～85℃ |
Dimensions (LxWxH): |
117 X 80 X 24 (mm) |
Model:LNK-12GSDI-1V2R1GE Series
Overview

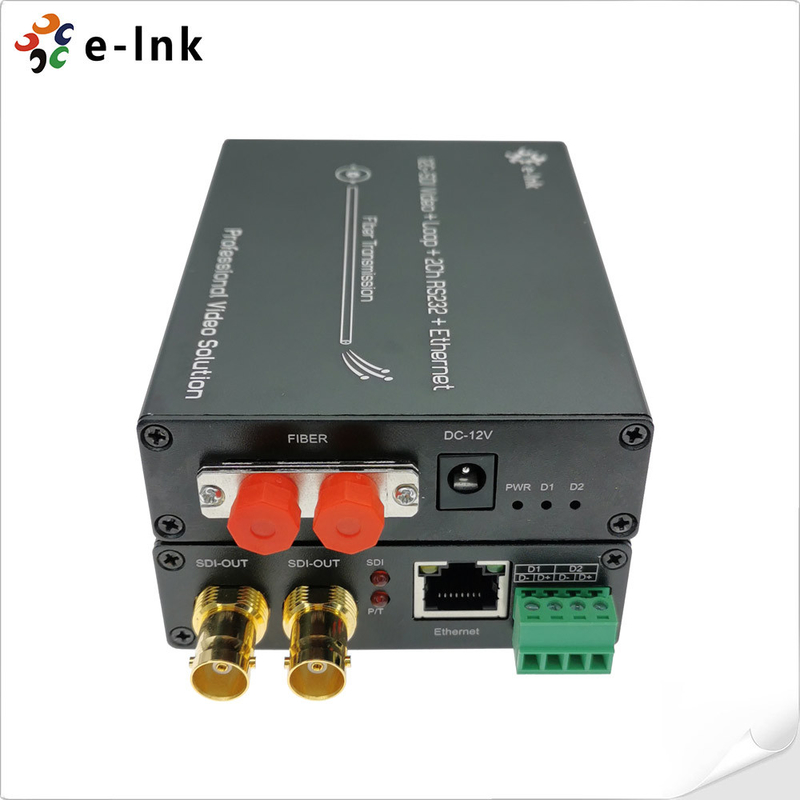

The LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports the transmission of 1 channel of
12G video (with embedded audio), 1 channel of Gigabit Ethernet, and 2 channels of backward-compatible
RS485 over fiber optic cable. It also provides local monitoring of the signal via a 12G loop output. This 12G
video over fiber solution includes both a transmitter and a receiver, supporting HDTV formats such as 4K2K
(38402160@60Hz), 1080P, 1080I, and 720P.
Features
Technical Indexes
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Output | 2 x FC optical fiber |
| 1 x 12G-SDI loop-out on BNC | |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Output cable specification | ≤60m@12G SDI Belden 1694A |
| Ethernet | 10/100/1000Mbps |
| Data type | 2Ch Backward RS485 |
| Optical transmission bandwidth | 270MHz～12GHz |
| Power | 12 VDC |
| Power Consumption | 6 W (Max.) |
| Dimensions (LxWxH) | 117 x 80 x 24 (mm) |
| Operating Temperature | -10℃～70℃ |
| Storage Temperature | -40℃～85℃ |
Application
Video
