Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-MHD Series
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiate
Packaging Details: SDI Fiber Extender Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Power Adaptor: |
5V DC, Type-C Interface |
Fiber Interface: |
Simplex LC |
Transmission Distance: |
550m-20Km |
Video Input/output Impedance: |
75Ω |
Storage Temperature: |
-40℃～+80℃ |
Dimensions (LxWxH): |
79 X 27 X 18 Mm |
Power Adaptor: |
5V DC, Type-C Interface |
Fiber Interface: |
Simplex LC |
Transmission Distance: |
550m-20Km |
Video Input/output Impedance: |
75Ω |
Storage Temperature: |
-40℃～+80℃ |
Dimensions (LxWxH): |
79 X 27 X 18 Mm |

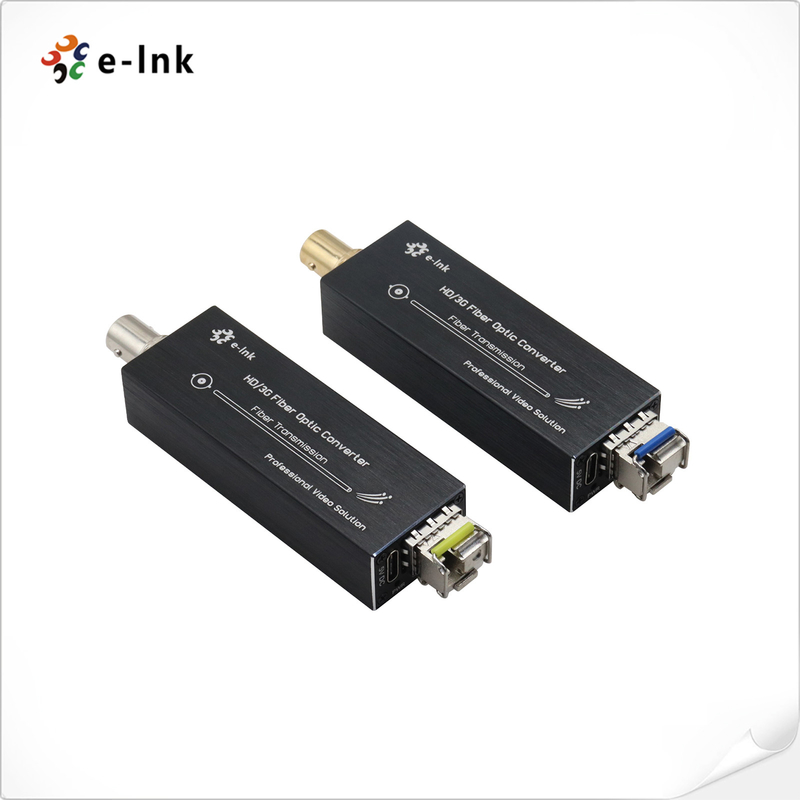

SDI Fiber Extender
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Terminal block power input; Hot swap and hot plug;
► Full digital non-compression broadcast level transmission;
► Super optic dynamic range and free of adjustment;
► Fiber optic WDM/CWDM/DWDM technique;
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 1.48Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| Video SDI standard | 270Mbps (SD-SDI) |
| 1.485Gbps (HD-SDI) | |
| Electrical | |
| Power adaptor | 5V DC, Type-C Interface |
| Power consumption | <3W |
| LED Indicator | |
| SDI | SDI video |
| P/T | Power Supply |
| Mechanical | |
| Dimensions (LxWxH) | 79 x 27 x 18 mm |
| Weight | 0.5KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Operating humidity | 5%~90% non-condensing |
| Storage humidity | 5% ~ 90% non-condensing |
| MTBF | ≥100000 hours |
ordering information
| Model | Description |
| LNK-MHD-MM | Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-20 | Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
