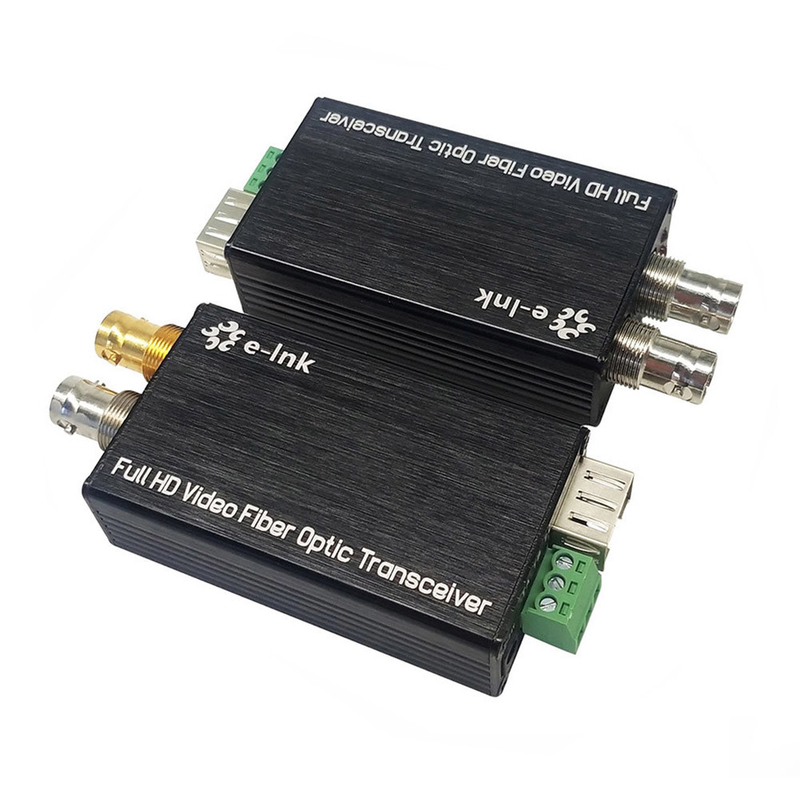

SDI Optical Fiber Mini Converter witn Long transmission capability up to 80 km

SDI Optical Fiber Mini Converter witn Long transmission capability up to 80 km

SDI Fiber Converter Advantages:

► Each channel includes 8-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► Super optic dynamic range and free of adjustment;

► 1470~1610nm CWDM wavelengths optional;

►industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Overview

LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio

embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal

locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one

transmitter and one receiver for 1080P 3G/HD-SDI signal.

► Animal films recording

► Live events broadcast over fiber

► High performance(error-free) surveillance networks in Army or security;

► Large video wall system

► Intelligent Traffic Monitoring System

► Security systems

► Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)

► Military Monitoring (Warehouse, Border, Guards, etc)

► Stadium (For LIVE HD video, audio transmission)

Dimensions

POWER REQUIREMENT

• DC 5~12V/1A
• Power supply ripple less than 100mV
• The selected power supply unit should fit for the environment.

Interface & LED overview

Instruction of installation

1. Before you install

Check the product upon receipt for any visible damage which may have been caused during shipment.

(1) Package Content:

          SDI Fiber Transmitter x 1

          SDI Fiber Receiver x 1

          Power Adapter x 2

         User Manual x 1

(2) Please read the user’s manual carefully before you install the product.

(3) Please read safety instruction carefully

(4) Do not open the device;

(5) Please note the sticker on the devices, T is transmitter, R is receiver.

2. Procedure of installation

(1) Connect optical Transmitter and camera or other output device. And connect with fiber.

Then power device on.

(2) Connect optical Receiver and monitor. And connect with fiber. Then power device on.

3. TALLY or Reverse RS485 Connection:

Transmitter TALLY or RS485 Signal Output Connection: (Can drive the LED indicator directly)

Receiver TALLY or RS485 Signal Input Connection: (LED load type is  suitable for OC drive LED - driver)

Responsibility instruction

• Customer will take the responsibility for the loss if returns/replacement is damaged during transportation.
• Please contact us directly if devices are damaged during transportation from our side.
• We’ll not be responsible for the damage if devices are damaged with customers’ own power supply.
• Please use the power supply strictly as per the user’s manual.
• The user’s manual can’t be printed personally or spread via internet without our permission.
• We’ll not be responsible for anyone who amend the manual or add some features our product.
• This may cause damage for other external devices.
• We will repair/replace for the faulty devices which still under the warranty.
• Please recycle the packing of device, there we have only one earth.

Technical Indexs

Package Includes

Package Includes

► SDI Transmitter x 1

► SDI Receiver x 1

► SFP module x 2

► User’s Manual

Please verify all items are included in the box. If anything is missing, please contact the vendor.
