Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-IMC010G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Industrial Ethernet Switch |
Input Power: |
12~48VDC |
Weight: |
300g |
Dimensions (WxDxH): |
95 X 88 X 46mm |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Industrial Ethernet Switch |
Input Power: |
12~48VDC |
Weight: |
300g |
Dimensions (WxDxH): |
95 X 88 X 46mm |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Mini Industrial Ethernet Switch Advantages
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| Connector: | 10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
Overview

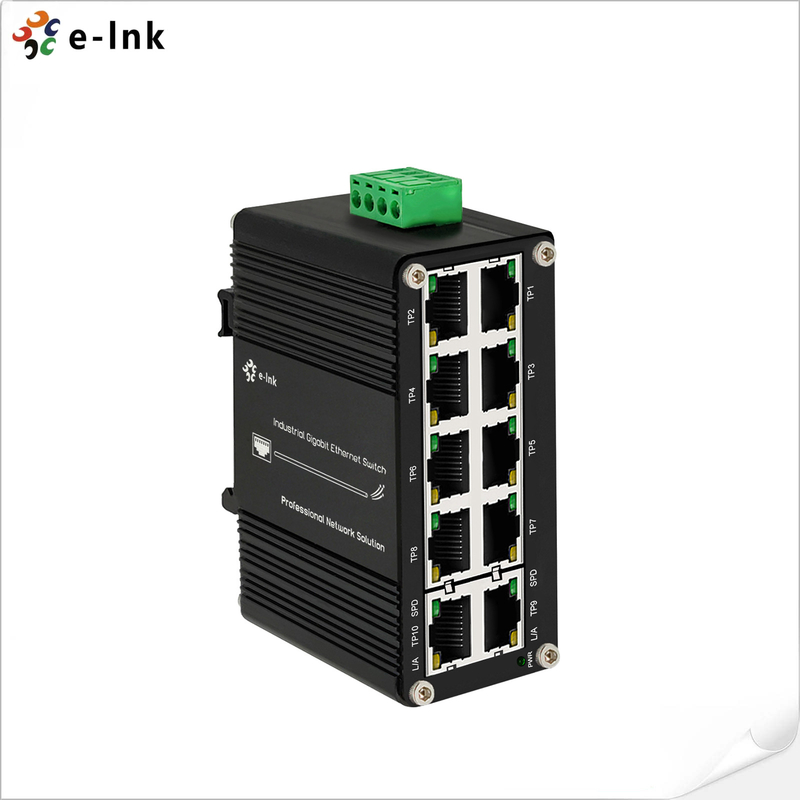

LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power
input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and si-
mple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh envir-
onment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the
needs of industrial applications.
Ordering Information
| Model | Description |
| LNK-IMC010G | Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
