Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-IMC104G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Mini Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial Ethernet Switch |
Mounting Options: |
DIN-Rail / Wall-mount |
Input Power: |
12~48VDC |
Casing: |
Aluminum Case |
Weight: |
0.25Kg |
Dimensions: |
95 X 70x 29m |
Key Word: |
Mini Industrial Ethernet Switch |
Mounting Options: |
DIN-Rail / Wall-mount |
Input Power: |
12~48VDC |
Casing: |
Aluminum Case |
Weight: |
0.25Kg |
Dimensions: |
95 X 70x 29m |

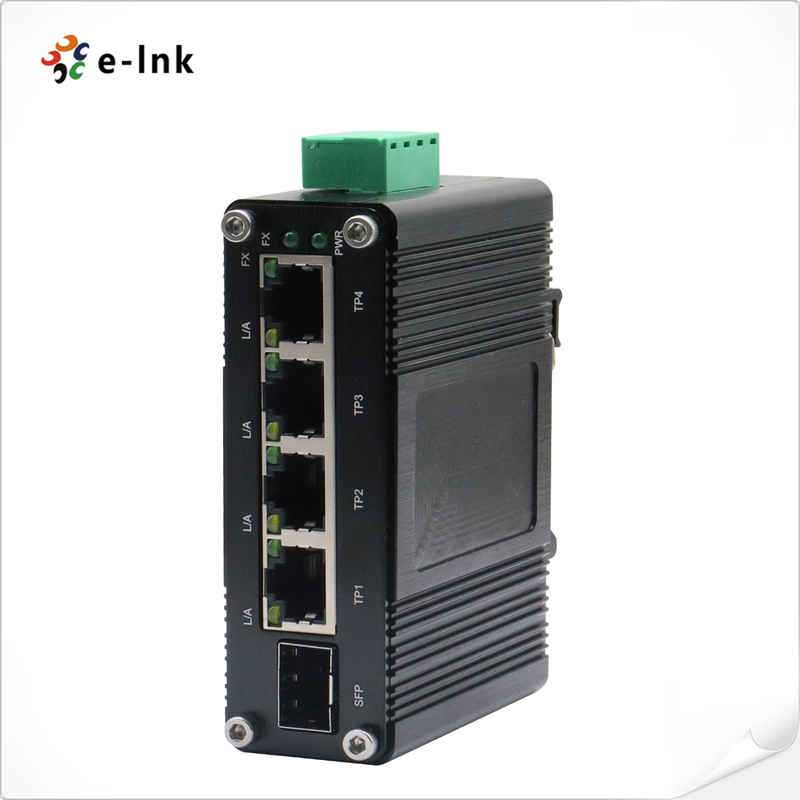

Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
Mini Industrial Ethernet Switch Advantages
► 100/1000BASE-X SFP slots for SFP type auto detection
► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
Technical Indexes
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
Overview
LNK-IMC104G-SFP Series is a Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch . This
unmanaged industrial Ethernet switch is designed to match the critical industrial standards.
Ordering Information
| Model | Description |
| LNK-IMC104G-SFP | Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
