Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-IMC005GM
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: US$29.9/pc
Packaging Details: Industrial Ethernet Switch Standard Package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Interface: |
5 X RJ45 |
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
<6W |
Dimensions: |
95 X 70 X 29mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Interface: |
5 X RJ45 |
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
<6W |
Dimensions: |
95 X 70 X 29mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |

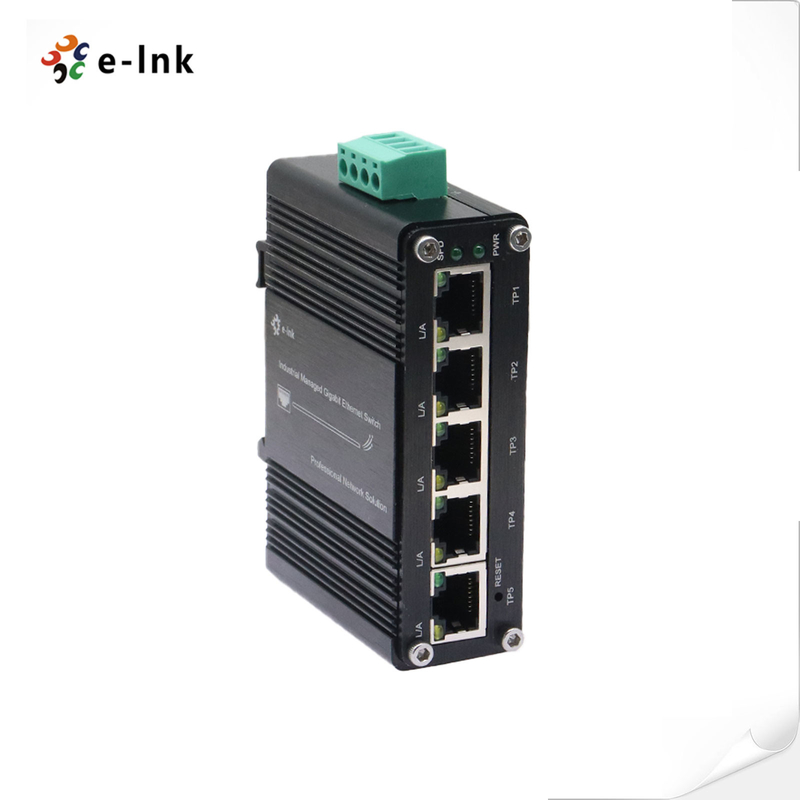

Mini Industrial Web Managed Gigabit Ethernet Switch 5x Gigabit RJ45 Ports
Industrial Ethernet Switch Advantages
Specifications
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3af/at Optional | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48V DC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| Dimensions (WxDxH): | 95 x 70 x 29 mm |
| Weight: | 0.25KG |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| WEB Management Features | |
| System Settings | Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management | Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings | 802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings | Priority Selection; Scheduling Mode |
| Loop Detection | Support |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
Overview
LNK-IMC005GM is a Mini Industrial Web Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with
12~48VDC wide range power input.
Order Information
| Model | Description |
| LNK-IMC005GM | Mini Industrial Web Managed 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately. ► Recommend MeanWell MDR-20-24 |
