Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: LNK-IMC005GM
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: 29.9USD/pc
Packaging Details: Industrial Ethernet Switch standard export package
Delivery Time: 3-6working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000pcs/month
Connector: |
5*10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
Switch Fabric: |
10Gbps/non-blocking |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Packet Buffer: |
1Mbits |
Dimensions (WxDxH): |
95 X 70 X 29 Mm |
Power Consumption: |
<6W |
Connector: |
5*10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
Switch Fabric: |
10Gbps/non-blocking |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Packet Buffer: |
1Mbits |
Dimensions (WxDxH): |
95 X 70 X 29 Mm |
Power Consumption: |
<6W |

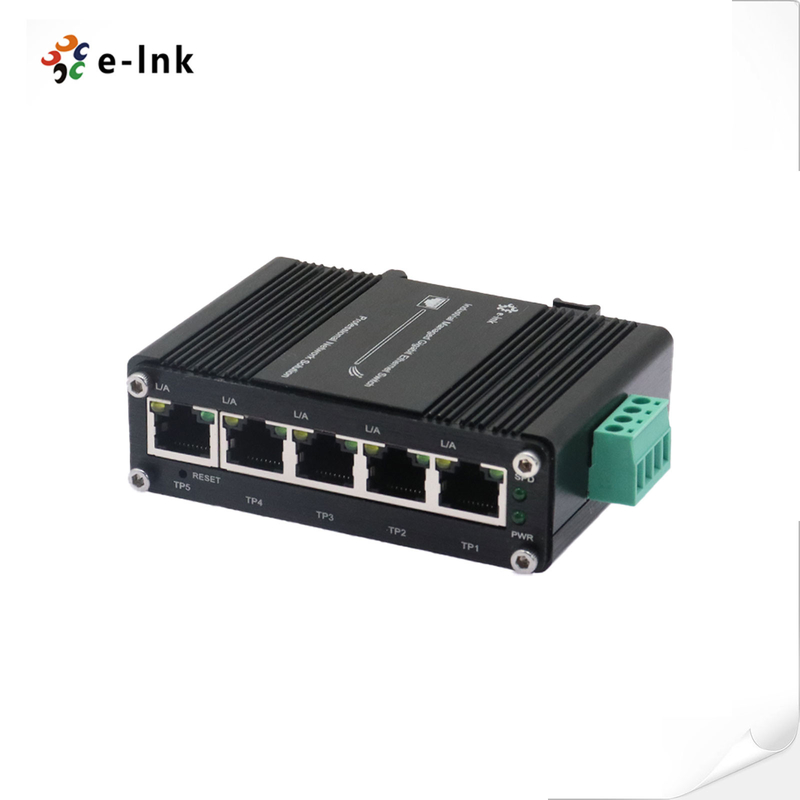

Mini Industrial Managed 5-Port Gigabit Ethernet Switch Supports WBE Mannagement
Mini Industrial Managed Ethernet Switch Advantages
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48V direct curency wide range power input
► Supports 802.3x Flow control
► Supports WEB Management
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V
DC wide range power input. This managed industrial Ethernet switch is designed to match the critical
industrial standards. With reliable and simple operation against vibration and shock, and wide operation
temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC
standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.
It is a good choice for an economical solution for industrial Ethernet connections.
LNK-IMC005GM can also operate at standard operating temperature range -40 to 80°C. Housed in rugged
DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments,
such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military
and utility market applications where environmental conditions exceed commercial product specifications.
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3af/at Optional | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48V DC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| Dimensions (WxDxH): | 95 x 70 x 29 mm |
| Weight: | 0.25KG |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| WEB Management Features | |
| System Settings | Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management | Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings | 802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings | Priority Selection; Scheduling Mode |
| Loop Detection | Support |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
Ordering Information
| Model | Description |
| LNK-IMC005GM | Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately ► Recommend MeanWell MDR-20-24 |
