Product Details
Place of Origin: China
Brand Name: e-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC005GM
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: 29.9
Packaging Details: Industrial Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Mini Industrial Managed Swiitch |
Switch Fabric: |
10Gbps/non-blocking |
Connector: |
5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Dimensions (WxDxH):: |
95 X 70 X 29 Mm |
Weight: |
0.25KG |
Keywords: |
Mini Industrial Managed Swiitch |
Switch Fabric: |
10Gbps/non-blocking |
Connector: |
5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Dimensions (WxDxH):: |
95 X 70 X 29 Mm |
Weight: |
0.25KG |

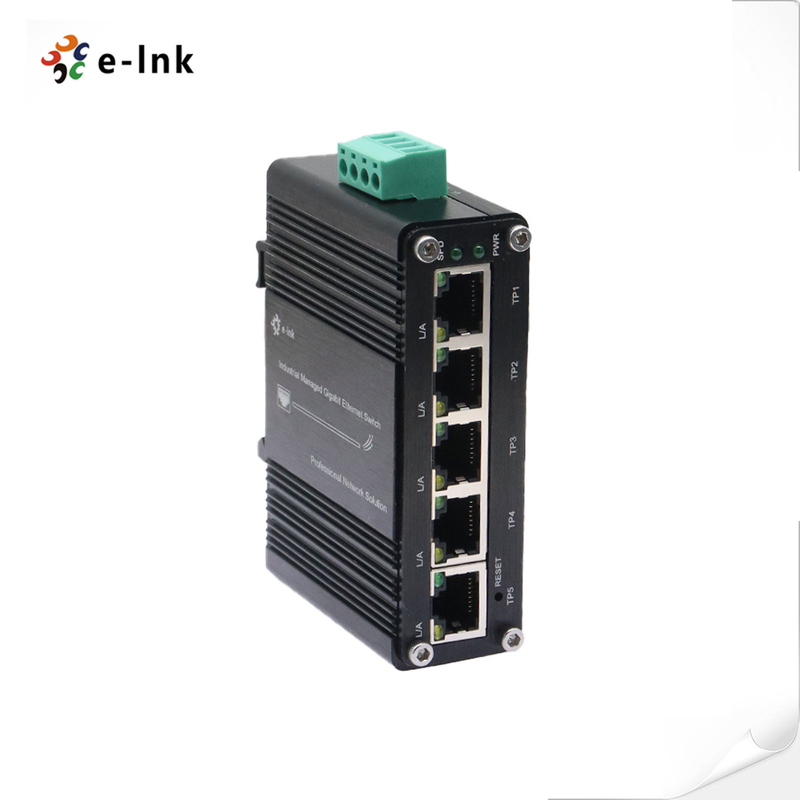

Mini Industrial Managed 5-Port Gigabit Ethernet Switch
Industrial Managed Switch Advantages
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48V DC wide range power input
► Supports 802.3x Flow control
► Supports WEB Management
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Tchenical Indexes
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Electrical and Mechanical | |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| WEB Management Features | |
| System Settings | Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management | Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings | 802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings | Priority Selection; Scheduling Mode |
| Loop Detection | Support |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
Overview
LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC wide range power input. This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
LNK-IMC005GM can also operate at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications
Ordering Information
| Model | Description |
| LNK-IMC005GM | Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately ► Recommend MeanWell MDR-20-24 |
