Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-SP5VG-USB
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Splitter Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Power Splitter |
Dimensions (WxDxH）: |
83 X 28 X 22mm |
Power Pin: |
1/2(+), 3/6(-); 4/5(+), 7/8(-) |
Power Input: |
44-57V DC |
Weight: |
59g |
Operating Temperature: |
0°C~55°C |
Key Word: |
PoE Power Splitter |
Dimensions (WxDxH）: |
83 X 28 X 22mm |
Power Pin: |
1/2(+), 3/6(-); 4/5(+), 7/8(-) |
Power Input: |
44-57V DC |
Weight: |
59g |
Operating Temperature: |
0°C~55°C |
PoE Splitter Adapter Advantages
· Power Input: DC48V
· Power Output: DC5V 2.4A
· Data Output Port: RJ45 Male
· Power Output Port: Micro USB Power Plug
· Data Transfer Rate: 10/100/1000Mbps
Technical Indexes
| Power Pin | 1/2(+), 3/6(-); 4/5(+), 7/8(-) |
| Power Input | 44-57V DC |
| Power Output | 5V 2.4A DC |
| Date Rate | 10/100/1000Mbps |
| Distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-T: cat 5 and above UTP(≤100m) |
| LED Indicator | POE input indicator; PD output indicator |
| Environmental |
Working Temperature: 0°C~55°C Storage temperature: -20°C~75°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
| Radiation | CE mark,commercial,FCC Part 15 Class B,RoHS |

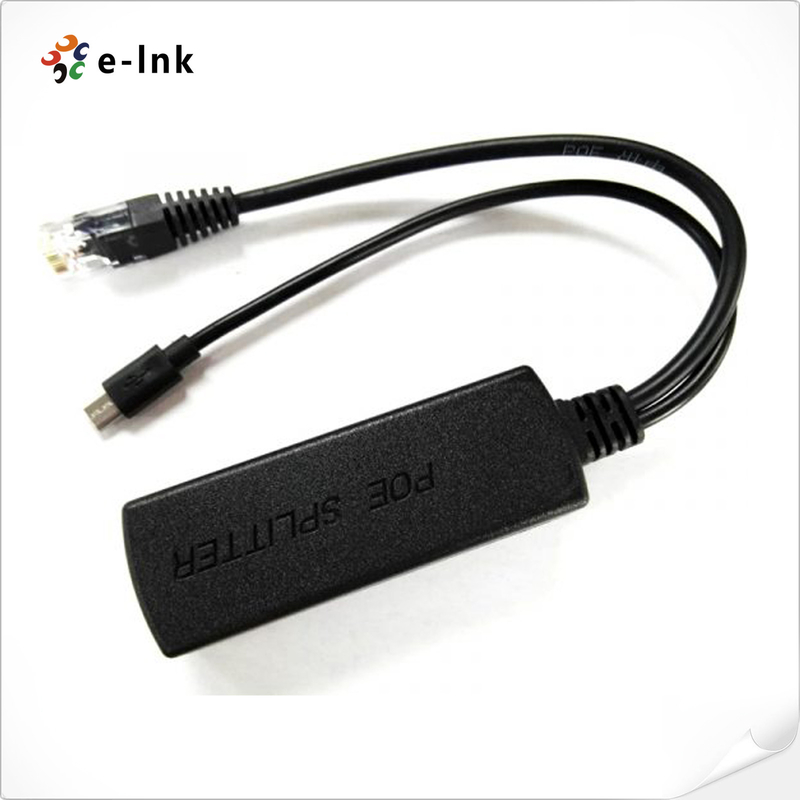

Overview
The LNK-SP5VG-USB is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam,
Raspberry Pi ,Android, Tablet etc. It can be transmitted power and data signals through the cable transmission.
| Model | Description |
| LNK-SP5VG-USB | 10/100/1000M 5V 2.4A POE splitter with Micro USB port |
