Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-SP15WG
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Splitter Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Power Splitter |
Port: |
1 GE(10/100/1000M) POE Input+1 Network+1 DC Output |
Power: |
15W |
Operating Temperature: |
-20°～55°C |
Weight: |
0.2kg |
Dimensions (WxDxH）: |
250mm*28mm*24mm |
Key Word: |
PoE Power Splitter |
Port: |
1 GE(10/100/1000M) POE Input+1 Network+1 DC Output |
Power: |
15W |
Operating Temperature: |
-20°～55°C |
Weight: |
0.2kg |
Dimensions (WxDxH）: |
250mm*28mm*24mm |
PoE Splitter Adapter Advantages
· Plug＆Play
· Built-in high performance chip and high specification circuit board
· Stable:AKros AS1138, with lightning protection
· RJ45 full shield port
· Full bridge design, non polarity input
Technical Indexes
| Model | LNK-SP15WG |
| DC out | 5V 3A |
| Power | 15W |
| distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-TX: cat 5 and above UTP(≤100m) |
| Port | 1 GE(10/100/1000M) POE input+1 Network+1 DC output |
| Environmental |
Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
| Radiation | CE mark,commercial,FCC Part 15 Class B,RoHS |
| Product Size | 250mm*28mm*24mm |
| Weight | 0.2kg |

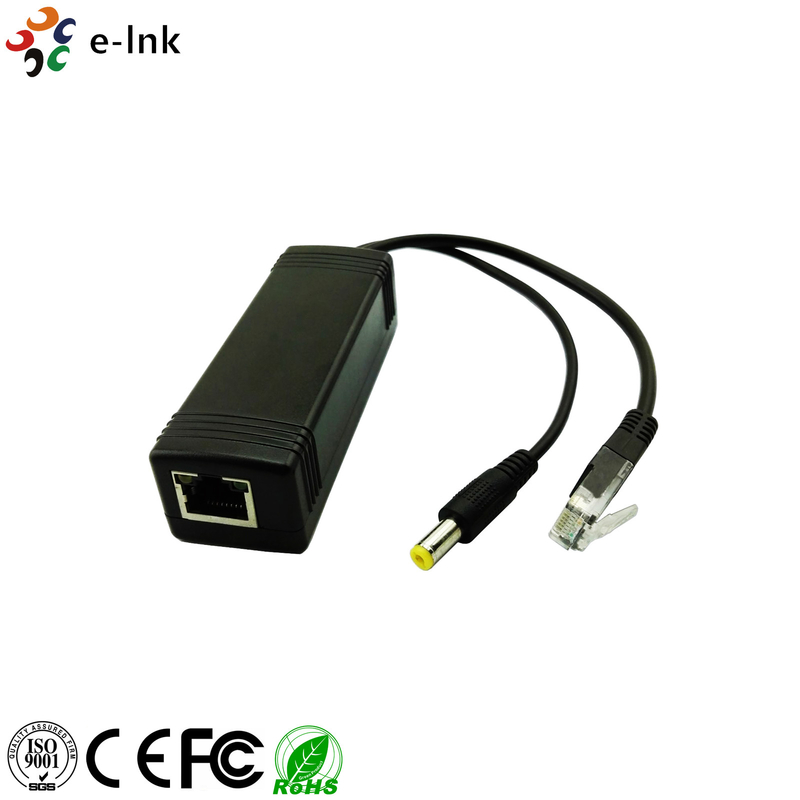

Overview
LNK-SP15WG PoE splitter, Develop used for Ethernet power supply application scenarios, device does not support POE
input Situation; support “IEEE 802.3af” and “IEEE 802.3at” POE power supply; DC output 5V 3A; The POE signal can be
separated into network signal and electric power.
| Model | Description |
| LNK-SP15WG | PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 15 watts, DC output 5V 3A |
