Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-3GSDI-4BV Series
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: SDI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
SDI Fiber Converter |
Weight: |
7KG/pair |
Working Temperature: |
-20℃～+70℃ |
Mounting Options: |
Rack Mount |
Casing: |
Aluminum Case |
Dimensions (LxWxH): |
19inch 1U (483 X 220 X 44.45mm ) |
Key Word: |
SDI Fiber Converter |
Weight: |
7KG/pair |
Working Temperature: |
-20℃～+70℃ |
Mounting Options: |
Rack Mount |
Casing: |
Aluminum Case |
Dimensions (LxWxH): |
19inch 1U (483 X 220 X 44.45mm ) |
SDI Fiber Converter Advantages:
► 4 channel bidirectional 3G-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Automatic re-clocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols
► Long transmission capability at least 10 km (6.2miles) , up to 120 km
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
Overview

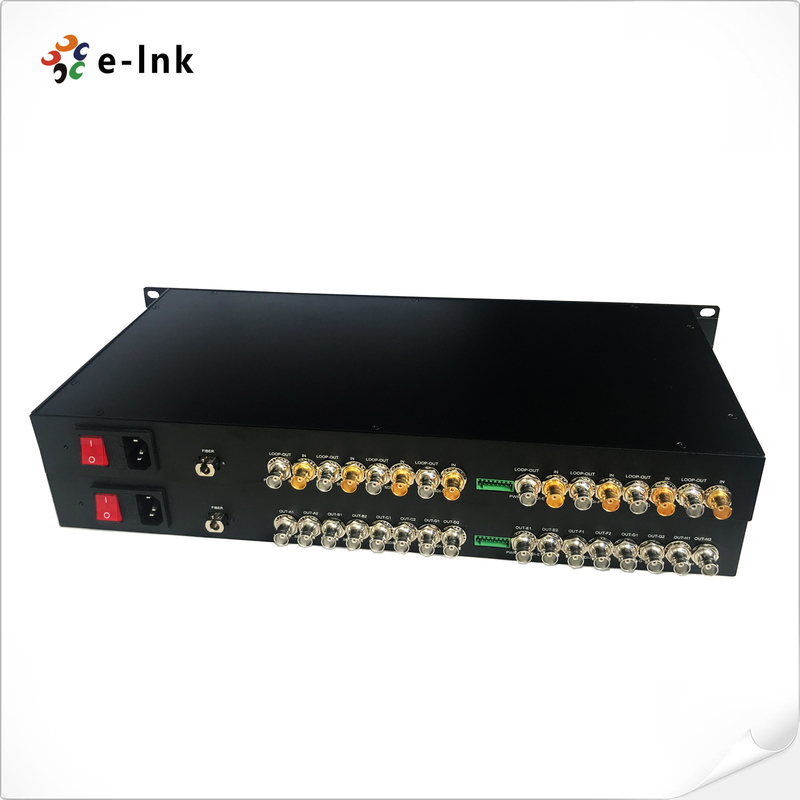

LNK-3GSDI-4BV Series supports 4-channel bidirectional 3G-SDI standard high-definition video signal transmitted via single
fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G-SDI Video over Fiber Converters
includes one transmitter and one receiver for 1080P 3G-SDI signal.
Ordering Information
| Model | Description |
| LNK-3GSDI-4BV | 4-Ch Bidirectional 3G-SDI Video with loop-out, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-4BV1R | 4-Ch Bidirectional SDI Video with loop-out + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
