Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-3G8V10GE
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: SDI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
SDI Fiber Converter |
Weight: |
8KG/pair |
Working Temperature: |
-20℃～+70℃ |
Mounting Options: |
Rack Mount |
Casing: |
Metal Case |
Dimensions (LxWxH): |
483 X 270 X 45mm (19inch 1U) |
Key Word: |
SDI Fiber Converter |
Weight: |
8KG/pair |
Working Temperature: |
-20℃～+70℃ |
Mounting Options: |
Rack Mount |
Casing: |
Metal Case |
Dimensions (LxWxH): |
483 X 270 X 45mm (19inch 1U) |
SDI Fiber Converter Advantages:
► 8Ch 3G-SDI/ASI video with embedded audio and 10G Ethernet over one fiber
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Built-in CWDM system, SFP modules for each path
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Video Input | 8 Channel with Loop Out on TX |
| Video Output | 8 Channel with Loop Out on RX |
Overview

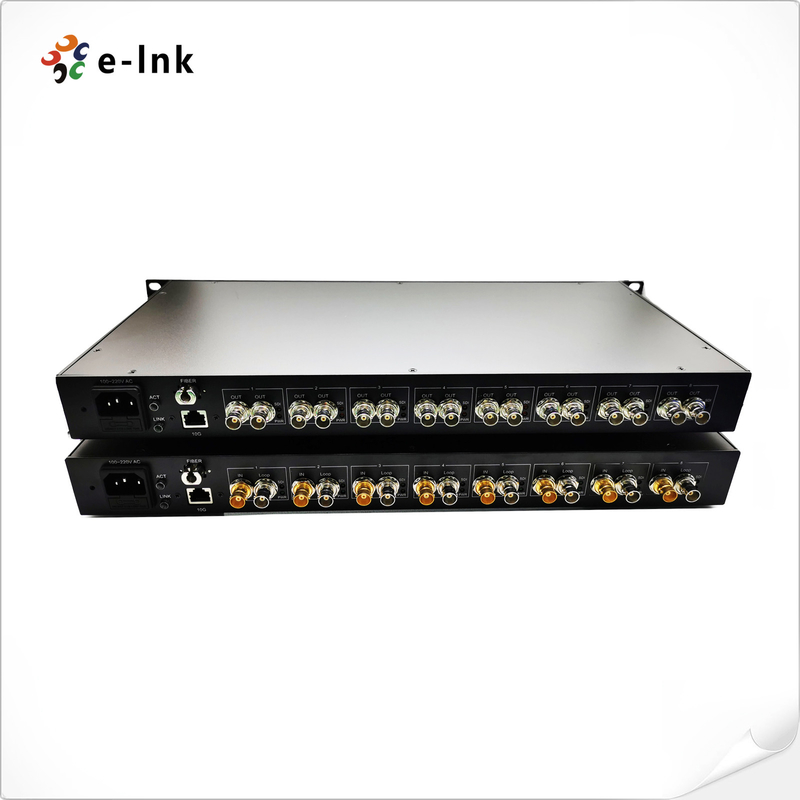

E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet
IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance
and brilliant HD video processing in real time.
Ordering Information
| Model | Description |
| LNK-3G8V10GE | 8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
