Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-12GSDI-1V2R1GE
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: SDI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
SDI Fiber Converter |
Power: |
12 VDC |
Power Consumption: |
6 W (Max.) |
Working Temperature: |
-10℃～70℃ |
Storage Temperature: |
-40℃～85℃ |
Dimensions (LxWxH): |
117 X 80 X 24 (mm) |
Key Word: |
SDI Fiber Converter |
Power: |
12 VDC |
Power Consumption: |
6 W (Max.) |
Working Temperature: |
-10℃～70℃ |
Storage Temperature: |
-40℃～85℃ |
Dimensions (LxWxH): |
117 X 80 X 24 (mm) |
SDI Fiber Converter Advantages:
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability up to 80 km
Technical Indexes
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Output | 2 x FC optical fiber |
| 1 x 12G-SDI loop-out on BNC | |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Ethernet | 10/100/1000Mbps |
| Data type | 2Ch Backward RS485 |
| Optical transmission bandwidth | 270MHz～12GHz |
Overview

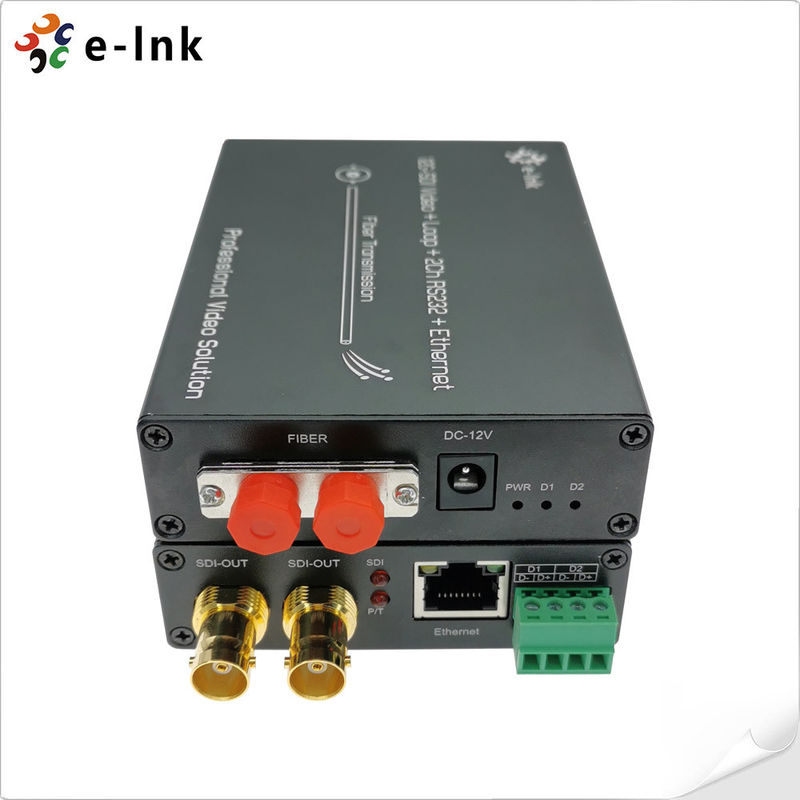

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch
Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over
Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.
