Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-MHD Series
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: SDI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
SDI Fiber Converter |
Working Temperature: |
-20℃～+70℃ |
Casing: |
Aluminum Case |
Weight: |
0.5KG/pair |
Mounting Options: |
Desktop |
Dimensions (LxWxH): |
79 X 27 X 18 Mm |
Key Word: |
SDI Fiber Converter |
Working Temperature: |
-20℃～+70℃ |
Casing: |
Aluminum Case |
Weight: |
0.5KG/pair |
Mounting Options: |
Desktop |
Dimensions (LxWxH): |
79 X 27 X 18 Mm |
SDI Fiber Converter Advantages:
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 1.48Gb/s |
Overview

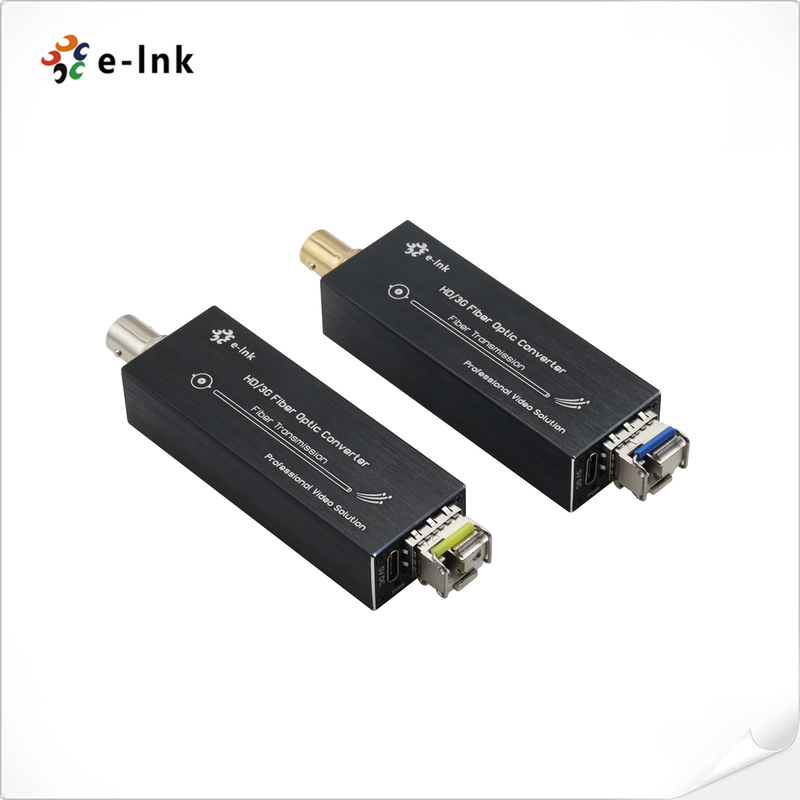

LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded) signal transmitted via fi-
ber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal.
Ordering information
| Model | Description |
| LNK-MHD-MM | Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-20 | Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
