Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-GYM7024G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Industrial PoE Switch |
Operating Temperature: |
-40℃~80℃ |
Warranty: |
5-year |
Protection Grade: |
IP40 Aluminum Case |
Dimensions: |
160mm X 130mm X 70mm (L X W X H) |
Weight: |
1000g |
Key Word: |
Industrial PoE Switch |
Operating Temperature: |
-40℃~80℃ |
Warranty: |
5-year |
Protection Grade: |
IP40 Aluminum Case |
Dimensions: |
160mm X 130mm X 70mm (L X W X H) |
Weight: |
1000g |
Industrial Ethernet Switch Advantages:
► 24x10/100/1000Base-T Ethernet ports
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
Technical Indexes
| Physical Port | |
| RJ45 port and speed | 24x10/100/1000Base-TX |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 160mm x 130mm x 70mm (L x W x H) |
| Installation mode | DIN Rail/Wall-mountable |
| Weight | 1000g |
Overview

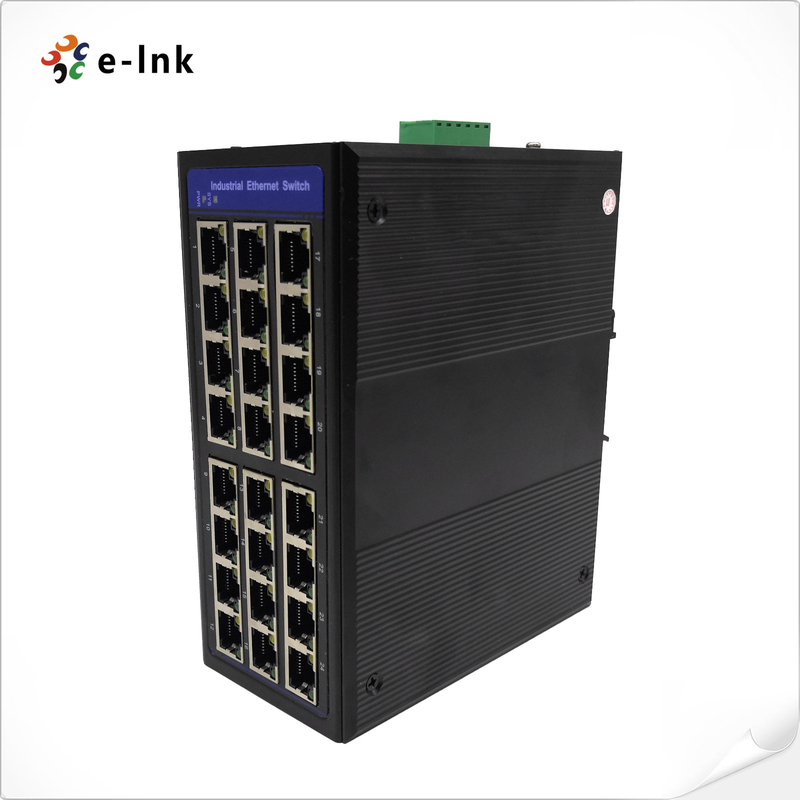

LNK-GYM7024G Series is a new generation industrial Managed Ethernet switch with 24-Port Ethernet ports that provide
stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the
broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical
transmission with efficient bandwidth and reliable network solutions for users.
Ordering Information
| Model | Description |
| LNK-GYM7024G | Managed Industrial 24-Port 10/100/1000Base-T Ethernet Switch |
|
Mounting Options
|
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
