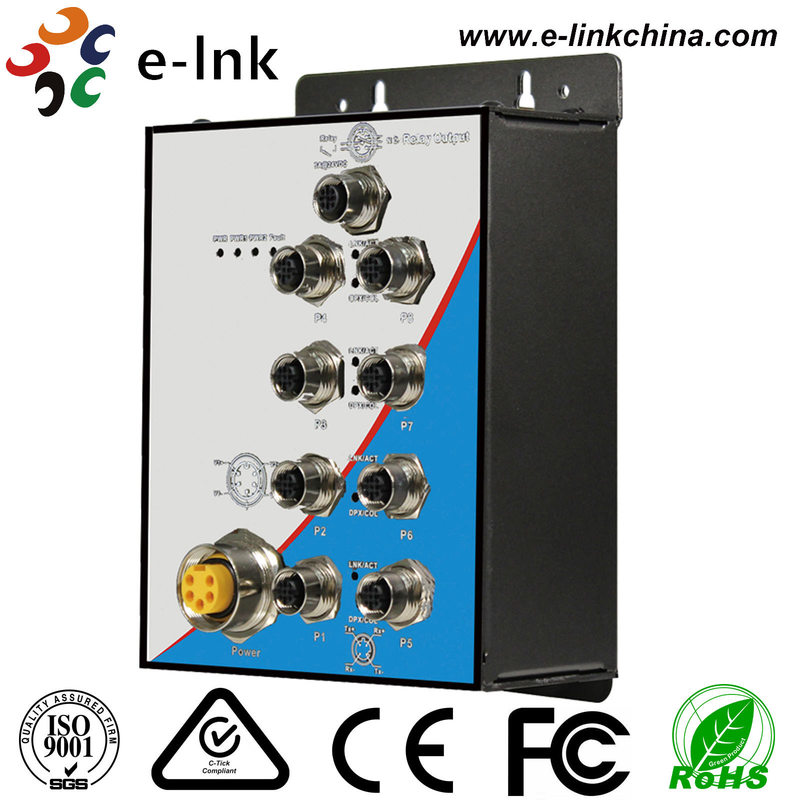

Industrial 8-port M12 Ethernet Switches / Railway / EN50155

Name: Industrial 8-port M12 Ethernet Switches / Railway / EN50155
Brand: E-link China Technology Co.,LTD
SKU: LNK-ES108P Series
Price: 188.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS，ISO9001

Model Number: LNK-ES108P Series

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimensions:	125 * 65 * 196 Mm ( 4.9 X 2.6 X 7.7 In )	Weight:	800g
Operating Temperature:	-40 ~ 85 ℃ ( - 40 ~ 185 °F)	Storage Temperature:	-40 ~ 85 ℃ ( - 40 ~ 185 °F)
Warranty:	5 Years	Housing:	Aluminum , IP40 Protection

Dimensions:	125 * 65 * 196 Mm ( 4.9 X 2.6 X 7.7 In )
Weight:	800g
Operating Temperature:	-40 ~ 85 ℃ ( - 40 ~ 185 °F)
Storage Temperature:	-40 ~ 85 ℃ ( - 40 ~ 185 °F)
Warranty:	5 Years
Housing:	Aluminum , IP40 Protection

Description

Industrial 8-port M12 Ethernet Switches / Railway / EN50155

Industrial 8-port M12 Ethernet Switches / Railway / EN50155 Advantage

· EN50155 compliant Ethernet switch for railway applications

· Supports auto-negotiation and auto-MDI/MDI-X

· Supports store-and-forward transmission

· Supports flow control

· Warning system by relay output

· Ultra-rugged enclosure for toughest industrial usages

· M12 connectors to guarantee reliable operation against environmental disturbances

· Dual wide-range 12~48VDC power inputs on the M23 connector

· Wall mounting enabled

Industrial 8-port M12 Ethernet Switches / Railway / EN50155 Overview

The LNK-EN108A series Ethernet switches are designed for industrial applications, such as rolling

stock, vehicle, and railway applications. It has 8x10/100BaseT(X) port which is compliant with

EN50155 requirement. It is specifically designed for the toughest industrial environments. By using

M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will

be robust enough to protect your applications from external disturbances, such as the vibration and

shock encountered in the transportation industry. In addition, the wide operating temperature range

from -40°C to 85°C can satisfy most of tough operating environments.

Industrial 8-port M12 Ethernet Switches / Railway / EN50155 Technical Indexes

Interface	RJ45 ports:10/100 Base-T(X) port in M12 D-coding Auto MDI/MDIX LED Indicators:PWR,L/A,SPD
Switch Properties	MAC Table size:8K Packet Buffer Size:1 Mbit Jumbo Frame Size:9.6 KB Processing Type:Store and Forward Flow Control: IEEE 802.3x flow control, back pressure flow control
Power Requirement	Input Voltage:Dual 12~48VDC Power Consumption:5 Watts Connection: M23 connector Overload Current Protection:Present Reverse Polarity Protection:Present
Physical Characteristics	Housing:Aluminum, IP40 protection Dimension:125 * 65 * 196 mm ( 4.9 x 2.6 x 7.7 in ) Weight:800g Installation:Field-style mounting, DIN-Rail mounting (with optional kit)
Environmental Limits	Operating Temperature:-40 ~ 85 ℃ ( - 40 ~ 185 °F) Storage Temperature:-40 ~ 85 ℃ ( - 40 ~ 185 °F) Ambient Relative Humidity:5 ~ 95% (non-condensing)
Environmental Limits	EMI : FCC Part 15 Subpart B Class A, EN 61000-6-4(Industrial) EMS: EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 E M I : FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) EMS: EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN61000-4-9, EN61000-4-11,IEEE 1613 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 MTBF (mean time between failures):305,000 hrs IEEE 802.3for10BaseT IEEE 802.3u for100BaseTX and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for Flow Control
Warranty	5 years
