Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-2412P-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD89/PCS
Packaging Details: PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Access Mode: |
10/100Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
20/40/60/80/100/120km |
RG45 Ports: |
24 |
Fiber Port: |
1 |
Uplink Ports: |
2 |
Access Mode: |
10/100Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
20/40/60/80/100/120km |
RG45 Ports: |
24 |
Fiber Port: |
1 |
Uplink Ports: |
2 |

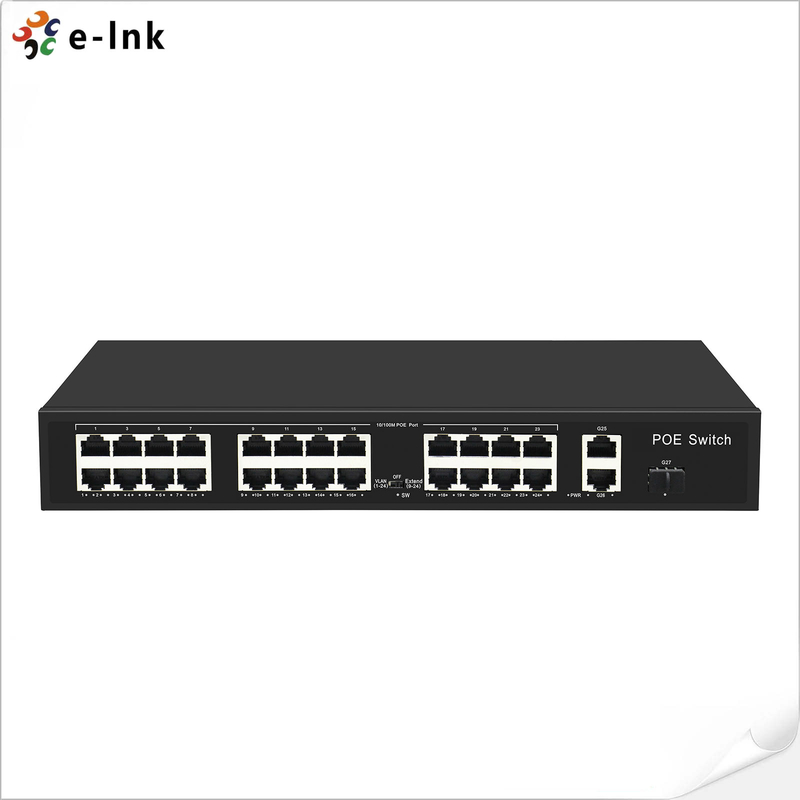

PoE Switch 24*10/100M PoE + 2*10/100/1000M Uplink RJ45 + 1*1000M Uplink SFP
PoE Switch Advantages:
24*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1* Gigabit SFP Uplink Port
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
Support 1U Rack Mount
Technical Indexes
| Port | 24*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1*Gigabit SFP Uplink Port |
| Network protocol | Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z |
| POE parameter | PoE standard: IEEE802.3af /IEEE802.3at |
|
Each port power:15.4 W (IEEE 802.3af) Each port power:30 W (IEEE 802.3at) |
|
| PoE compatibility:IEEE 802.3af/at adaptive | |
| POE output voltage: DC48~55V | |
| POE power pin:1/2+; 3/6- | |
| Optical (SFP) |
Multimode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km (depending on SFP module) Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km (depending on SFP module) |
| Performance |
Bandwidth: 10.8Gbps (non-blocking) Packet forwarding rate: 8Mpps Packet Buffer Memory: 1M MAC address table: 2K |
| Warranty | 2 years |
The LNK-2412P-SFP PoE Switch with 24 Port 10/100M PoE + 2 Port Gigabit Ethernet Uplink + 1 Port Gigabit SFP Uplink Port,
it’s using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard,
this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection
Ordering Information
| Model | Description |
| LNK-2412P-SFP | 24*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1*Gigabit SFP Uplink Port, support PoE power supply function, compatible with both IEEE802.3af / IEEE802.3at standard. PoE Power Output: 15.4W / 30W each port. Total power budget 300Watts. 1U Rack Mount installation |
