Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-PS204
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: PoE Ethernet Switch Standard Export Package
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000
Power Supply: |
Power Adaptor |
Voltage Range: |
Please Refer To Table A 1 And 2 |
Consumption: |
＜5W |
Ethenet Standard: |
IEEE 802.3/802.3u/802.3af/at |
Backplane Bandwidth: |
1.0G |
Weight: |
315g |
Power Supply: |
Power Adaptor |
Voltage Range: |
Please Refer To Table A 1 And 2 |
Consumption: |
＜5W |
Ethenet Standard: |
IEEE 802.3/802.3u/802.3af/at |
Backplane Bandwidth: |
1.0G |
Weight: |
315g |

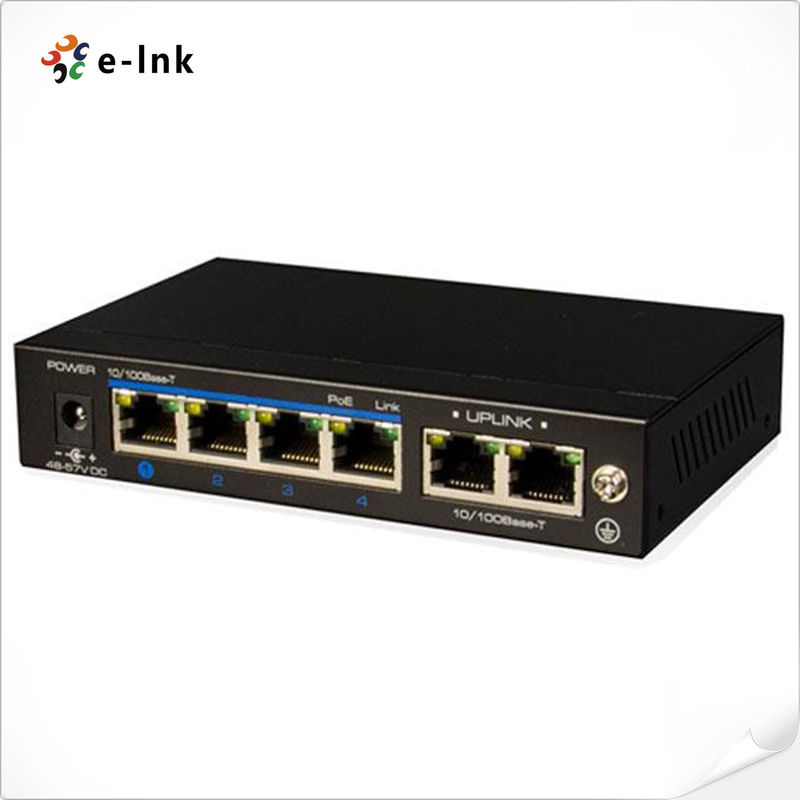

IEEE 802.3 802.3u 802.3af 802.3at 4 Port PoE Switch One Key CCTV Mode
4-Port PoE+ (250m) Switch
PoE Ethernet Switch Advantages
► Compliant with IEEE 802.3at PoE+
► Major ports: 2 pcs 100Mbps uplink Ethernet ports, 4 pcs 100Mbps down link Ethernet ports , every port supports MDI/MDIX;
► Special function: One key CCTV mode; 1～4 downlink ports can only communicate with uplink ports;
► Power input: DC48V～57V;
► Transmission Distance : Ethernet port 0～100m;
► Standard: Meet IEEE802.3 ,IEEE802.3u,IEEE802.3 af/at standards, PoE use End-Span, the spare cable can be of other use;
Technical Indexes
| Item | Description | ||||
| Power | Power Supply | Power Adaptor | |||
| Voltage Range | Please refer to table a 1 and 2 | ||||
| Consumption | ＜5W | ||||
| Ethernet | Speed | 1-4 port:Default:10/100Mbps; CCTV:10Mbps; UPLINK:100Mbps |
|||
| Transmission Distance | 1-4 port:Default:0～100m; CCTV:0~250m; UPLINK:100m |
||||
| Network Switch | Ethenet Standard | IEEE 802.3/802.3u/802.3af/at | |||
| Backplane Bandwidth | 1.0G | ||||
| Packet Forwarding | 0.75Mbps | ||||
| Packet Buffer | 768K | ||||
| MAC | 2K | ||||
Status Indicator |
Power Light | 1pcs(Red) | |||
| Ethernet Port Light | 2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act | ||||
| Surveillance Module | 1pcs(Green), green indicates CCTV | ||||
| Protection Level | Pluse Group | Level 2 Standard: IEC61000-4-4 |
|||
| ESD | 1a Contact Discharge Level 3 1b Air Discharge Level 3 Standard: IEC61000-4-2 |
||||
| Anti-thunder Level | Level 3 Standard: IEC61000-4-5 |
||||
| Working Environment | Working Temperature | 0℃~55℃ | |||
| Storage Temperature | -40℃~85℃ | ||||
| Humidity(Non- | 0~95% | ||||
Mechanical |
Dimension(L*W*H) | 135mm×85.6mm×27mm | |||
| Out Shell | Galvanized Sheet | ||||
| Color | Black | ||||
| Weight | 315g | ||||
| Power/Distance 54V |
Distance | 100m | 150m | 200m | 250m |
| Power | 26W | 24W | 23W | 21W | |
Overview
LLNK-PS204 Series is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. The product supports one key CCTV mode, can achieve VLAN after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Ordering Information
| Model | Description |
| LNK-PS204 | 4-Port PoE+ Switch: 2x10/100M RJ45 Uplink, 4x10/100M PoE+, 250m transmission distance |
