Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-AM208GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Managed PoE Switch Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pcs per month
Product Name: |
8 Port Managed PoE Switch |
Input Power: |
48~57VDC Or 100~265VAC |
Network Speed: |
10/100/1000Mbps |
PoE Standard: |
IEEE 802.3af/at |
Casing: |
Metal Case |
Mounting Options: |
Wall-mount And Desk/shelf Mounting |
Product Name: |
8 Port Managed PoE Switch |
Input Power: |
48~57VDC Or 100~265VAC |
Network Speed: |
10/100/1000Mbps |
PoE Standard: |
IEEE 802.3af/at |
Casing: |
Metal Case |
Mounting Options: |
Wall-mount And Desk/shelf Mounting |

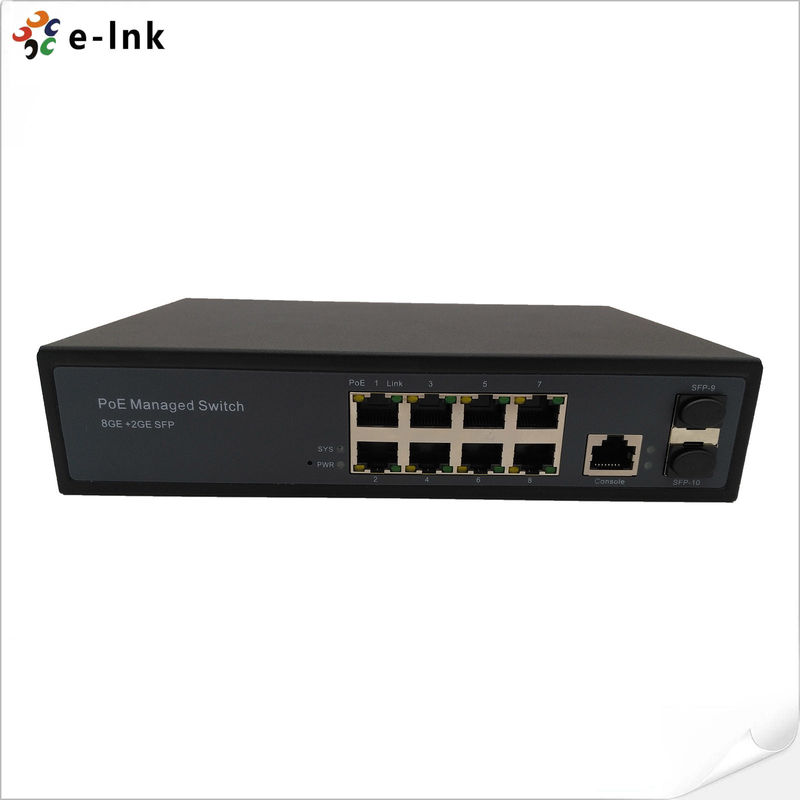

The LNK-AM208GP-SFP is a Layer 2 managed PoE switch which offers an array of connectivity options and comprehensive security measures. It features 4 port 10/100/1000Base-TX plus 2x1000Base-FX SFP ports, enabling data transfers up to 1 Gbps. The 8 Gigabit RJ45 ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE for added versatility.
The switch also has an integrated comprehensive security protection system, perfect QoS strategy, and comprehensive VLAN functions. Its simple management and maintenance capabilities make it an ideal choice for small and medium enterprises, as well as a core layer in community and school networks.
The TL-SG5428EPX is a powerful gigabit managed PoE Switch that is Powered Device (PD) compliant with IEEE802.3af/at PoE/PoE+ standards. It also supports 24V passive PoE. It enables stable 2.5G/Gigabit Ethernet connection with Full/Half-duplex operation and Auto-negotiation. The Uplink SFP connector accepts the latest 1000Base SFP modules for data fiber applications. This switch also supports Overcurrent, Shortcurrent, OverVOL, UnderVOL, Power Limitation, Safe Function HiPower PD star BOOTA, and Distance Management. It can distinguish between Active and Passive PD, and it is able to share a total of 150W PoE power with up to 30W for each port.
| Ethernet & Fiber | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3ab 1000Base-T | |
IEEE802.3z 1000Base-X (Fiber) | |
| IEEE802.3x Flow Control | |
| IEEE802.1q VLAN Bridge Operation | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type | Store-and-Forward (2.5M cache) |
| System Mode | Standard/VLAN Isolation |
| Switch Fabric | 20 Gbps |
| MAC address | 8K |
| Forward Filter Rate | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Ethernet Port | 8 x 10/100/1000Mbps RJ45 Ethernet Ports |
| Optical Port | 2 x SFP 1000Base-FX |
| Electrical and Mechanical | |
| Input Power (AC/DC 2 power) | 48~57VDC or 100~265VAC 50/60Hz |
| Power Consumption | 20W Max. (PoE not in use) |
| 150W Max. (PoE in use) | |
| LED Indicators | |
| Power | Power Status |
| 9-10 | Port Fiber |
| PoE Green | 48V PoE |
| PoE Orange | 24V PoE |
| Link Orange | 1000M Speed |
| Link Green | 10/100M Speed |
| PoE | |
| Standard | IEEE802.3af/at |
| Port | RJ45 Port1~Port4 |
| Max. Power per port | 30W Max per port (Alternative B mode) |
| PoE Output Auto-sensing | Support both Active and Passive PD without setting |
| PoE Interfaces | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Function | Support Overcurrent, Shortcurrent, OverVOL, UnderVOL, Power Limitation, Safe Function HiPower PD star BOOT, After Boot |
| Mechanical | |
| Dimensions (L x W x H) | 210 x 140 x 45 mm |
| Weight | 1.5Kg |
| Casing | Metal Case |
| Mounting options | Wall-mount and desk/shelf mounting |
| Environmental | |
| Operation Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | > 200,000 hrs |
At E-link, we offer comprehensive technical support and service for PoE Ethernet Switches.
We provide technical support for our PoE Ethernet Switches via phone, email, or live chat. Our technical support team is available to help you troubleshoot any issues you might have, answer questions, and provide guidance.
Our PoE Ethernet Switches are built to last, but if you ever need service, we are here to help. We offer repair and replacement services, as well as on-site maintenance and installation.
The PoE Ethernet Switch is securely packaged in a box with foam padding to protect against any damage during transport.
The box is then placed in an outer carton for additional protection. The carton is labeled with the product name, the shipping address, and the shipping method.
The PoE Ethernet Switch is shipped via an insured courier service with tracking information provided to the customer.
| Model | Description |
| LNK-AM208GP-SFP | Managed Switch: Auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE Switch: 8-Port 10/100/1000BASE-T + 2-Port 1000BASE SFP, support WEB management |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Wall-mount and desk/shelf mounting |
