Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-SFP50G-BX40
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Compatibility: |
Cisco/Huawei/Juniper/HP/etc. |
Connector Durability: |
500 Times |
Data Rate: |
1G/10G/25G/40G/100G |
Distance: |
0~10km/0~40km/0~80km |
Fiber Connector: |
Duplex LC/MPO |
Warranty: |
3 Years |
Compatibility: |
Cisco/Huawei/Juniper/HP/etc. |
Connector Durability: |
500 Times |
Data Rate: |
1G/10G/25G/40G/100G |
Distance: |
0~10km/0~40km/0~80km |
Fiber Connector: |
Duplex LC/MPO |
Warranty: |
3 Years |

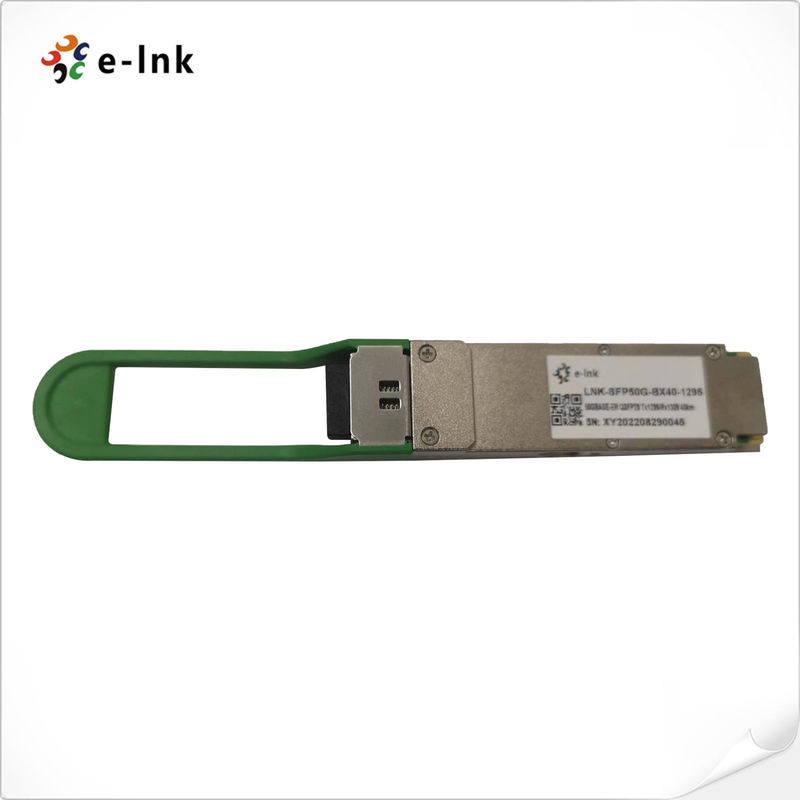

SFP Fiber Transceivers Generic Compatible 50GBASE-BX QSFP28 40km Simplex LC SMF
SFP Fiber Transceivers Overview
Generic Compatible 50GBASE QSFP28 transceiver supports up to 40km link lengths over OS2 SMF via a LC simplex connector. This transceiver is compliant with QSFP28 MSA, IEEE P802.3 standard. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters via the I2C interface. This transceiver is compliant with QSFP28 MSA, IEEE P802.3 standard, and is suitable for 50GBASE Ethernet, 5G Network Mid/Backhaul applications.
SFP Fiber Transceivers Advantages
SFP Fiber Transceivers Technical Description
Form Factor
QSFP28
Max Data Rate
53.125Gbps
Wavelength
1309nm-TX/1nm-RX
Max Cable Distance
40km
Connector
Simplex LC
Media
SMF
Transmitter Type
LAN-WDM
Receiver Type
PIN
TX Power
0.4~6.6dBm
Receiver Sensitivity
<-17.6dBm
Powerbudget
18dB
Receiver Overload
-6dBm
Power Consumption
<4.5W
Extinction Ratio
6dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
