Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-155M-20
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Storage Temperature: |
-40，85℃ |
Operating Temperature: |
0，70℃ |
Supply Voltage: |
0，3.6V |
Data Rate: |
155Mb/s |
Storage Temperature: |
-40，85℃ |
Operating Temperature: |
0，70℃ |
Supply Voltage: |
0，3.6V |
Data Rate: |
155Mb/s |

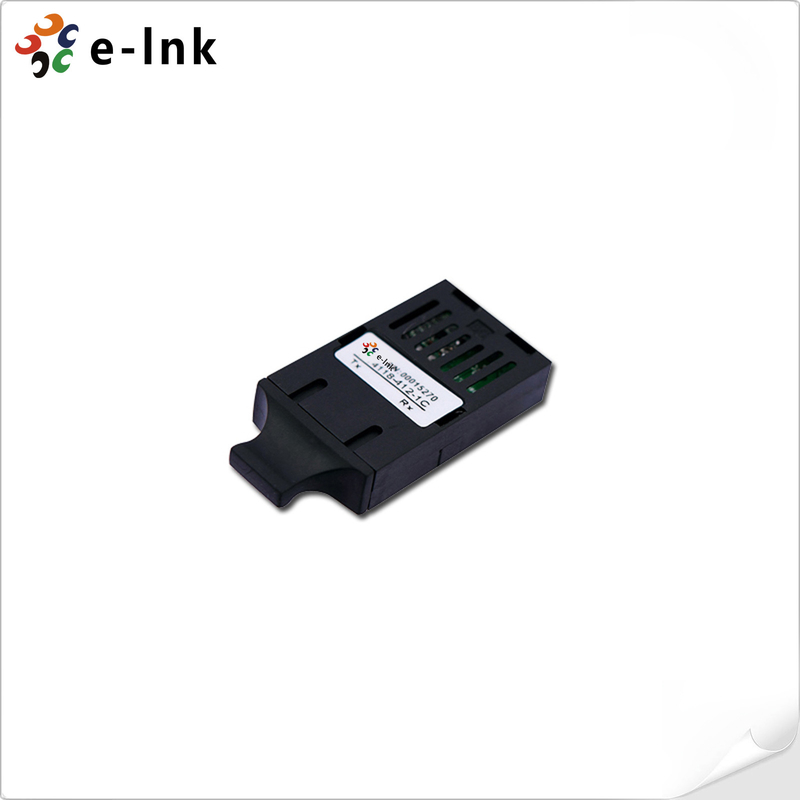

155M Single Mode 1x9 Optical Fiber Transceiver 20KM
Description
The 1×9 transceiver supports 155Mbps and 20Km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. The receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
SFP Fiber Transceivers Advantages
Performance specifications
| Parameter | Symbol | Minimum | Maximum | Units |
| Storage Temperature | Tst | -40 | +85 | °C |
| Operating Temperature | Top | 0 | +70 | °C |
| Supply Voltage | Vcc | 0 | +5 | V |
| Input voltage | Vin | GND | Vcc | |
|
Lead Soldering Temperature & Time |
240/10 | °C/s | ||
| Parameter | Symbol | Minimum | Maximum | Units |
| Supply Voltage | Vcc | 4.5 | 5.5 | V |
|
Ambient operating Temperature |
Top | 0 | +70 | °C |
| Operating Relative Humidity | - | 5 | 95 | % |
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Data rate | - | - | 155 | - | Mb/s |
| Center Wavelength | lo | 1260 | 1310 | 1360 | nm |
| Output Spectral width | Dl | - | - | 4 | nm |
|
Average Optical Output Power |
Po | -15 | - | -3 | dBm |
| Extinction Ratio | Er | 12 | - | 18 | dB |
| Rise/Fall Time(20%~80%) | Tr/Tf | 0.26 | ns | ||
| Total jitter | Tj | 0.43 | UI | ||
| Optical Eye Diagram | IEEE 802.3u and ANSI Fibre Channel Compatible | ||||
| Input differential impendence | Zdiff | 100 | Ohm | ||
