Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE
Model Number: LNK-155M-40
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: SFP Fiber Transceivers
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 500PCS/Month
Storage Temperature: |
-40，85℃ |
Operating Temperature: |
0，70℃ |
Supply Voltage: |
0，3.6V |
Data Rate: |
155Mb/s |
Storage Temperature: |
-40，85℃ |
Operating Temperature: |
0，70℃ |
Supply Voltage: |
0，3.6V |
Data Rate: |
155Mb/s |

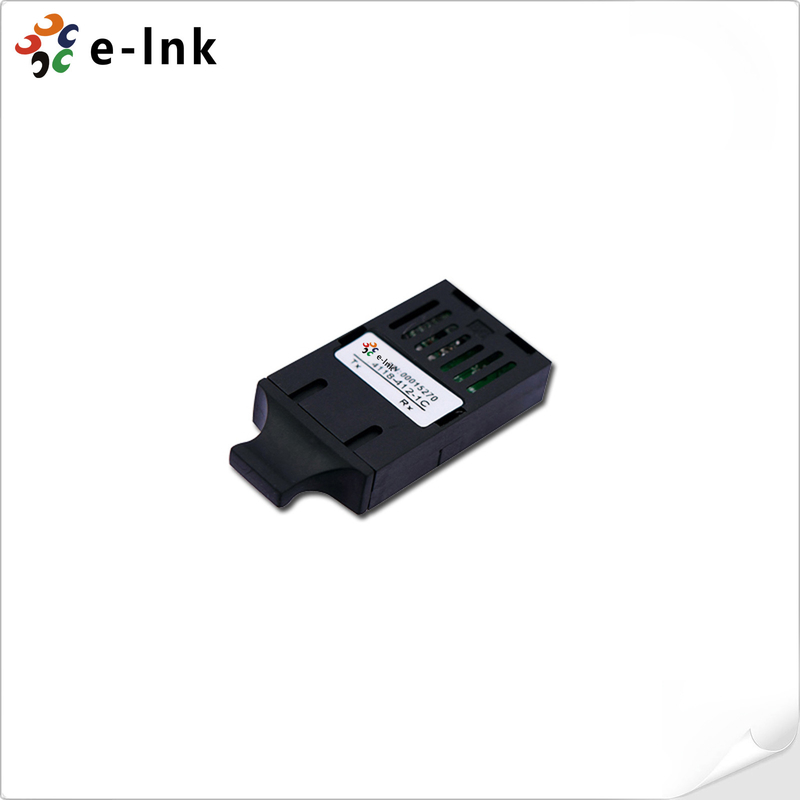

155M Single Mode 1x9 Optical Fiber Transceiver 20KM
Description
The 1×9 transceiver supports 155Mbps and 40Km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
SFP Fiber Transceivers Advantages
Performance specifications
| Parameter | Symbol | Minimum | Maximum | Units |
| Storage Temperature | Tst | -40 | +85 | °C |
| Operating Temperature | Top | 0 | +70 | °C |
| Supply Voltage | Vcc | 0 | +5.5 | V |
| Input voltage | Vin | GND | Vcc | |
|
Lead Soldering Temperature & Time |
240/10 | °C/s | ||
| Parameter | Symbol | Minimum | Maximum | Units |
| Supply Voltage | Vcc | 4.5 | 5.5 | V |
|
Ambient operating Temperature |
Top | 0 | +70 | °C |
| Operating Relative Humidity | - | 5 | 95 | % |
