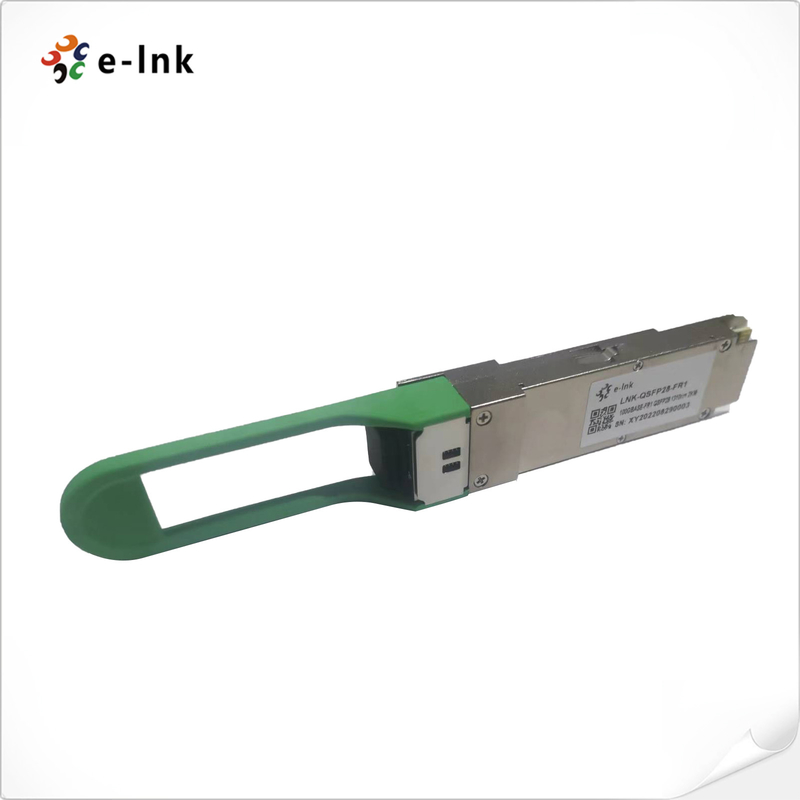

Model Number: LNK-QSFP28-FR1
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: QSFP Fiber Transceiver Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
100G QSFP Transceivers |
Temperature Range: |
0℃~+70℃ |
Transmission Distance: |
2KM |
Wavelength: |
1310nm |
Data Rate: |
100G |
Connector Type: |
Duplex LC |
Fiber Type: |
Single-Mode |
Warranty: |
3 Years |
Product Name: |
100G QSFP Transceivers |
Temperature Range: |
0℃~+70℃ |
Transmission Distance: |
2KM |
Wavelength: |
1310nm |
Data Rate: |
100G |
Connector Type: |
Duplex LC |
Fiber Type: |
Single-Mode |
Warranty: |
3 Years |
This product is compliant with the QSFP28 standard (SFF-8636 Rev 2.10a) and the IEEE802.3cu D3.2 100GBASE-FR1 standard. It features a high speed I/O electrical interface (CAUI-4) and a single 3.3V supply voltage. The maximum power consumption is 4W and it can operate in temperatures ranging from 0-70 ºC.
It is equipped with a 1311nm EML laser and PIN receiver, as well as a hermetically sealed TO based design. The QSFP28 MSA package comes with a duplex LC connector and a two wire serial interface with digital diagnostic monitoring. It also boasts KP4 FEC termination inside the module and supports a 2km reach of single mode fiber.
In addition, this product is compliant with the EU Directive 2011/65/EU (RoHS compliant).
Table 1 – Recommended Operating Conditions
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Operating Case Temperature | TOPR | 0 | - | 70 | ºC | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
| Instantaneous peak current at hot plug | ICC_IP | - | - | 1600 | mA | |
| Sustained peak current at hot plug | ICC_SP | - | - | 1320 | mA | |
| Maximum Power Dissipation | PD | - | - | 4 | W | |
|
Maximum Power Dissipation, Low Power Mode |
PDLP |
- |
- |
1.5 |
W |
|
| Signalling Rate | SR | - | 53.125 | - | GBd | |
| Control Input Voltage High | VIH | VCC*0.7 | - | VCC+0.3 | V | |
| Control Input Voltage Low | VIL | -0.3 | - | VCC*0.3 | V | |
| Two Wire Serial Interface Clock Rate | - | - | - | 400 | kHz |
Table 2 – Transmitter Optical Specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Wavelength | λC | 1304.5 | 1311 | 1317.5 | nm | |
| Side mode suppression ratio | SMSR | 30 | - | - | dB | |
| Average Optical Launch Power | POUT | -3.1 | - | 4 | dBm | 1 |
| Average launch power of OFF transmitter | POUT_OFF | - | - | -15 | dBm | |
| Extinction Ratio | ER | 3.5 | - | - | dB | |
| Outer Optical Modulation Amplitude (OMAouter) | OMAouter | - | - | 4.2 | dBm | |
|
Outer Optical Modulation Amplitude (OMAouter) for TDECQ <1.4 dB for 1.4 dB ≤TDECQ ≤3.4 dB |
OMAouter |
-0.1 -1.5+TDECQ |
- |
- |
dBm |
|
| Transmitter and dispersion eye closure | TDECQ | - | - | 3.4 | dB | |
| Transmitter eye closure for PAM4 (TECQ) | TECQ | - | - | 3.4 | dB | |
| | TDECQ - TECQ | | - | - | - | 2.5 | dB | |
| Over/under-shoot | - | - | - | 22 | % | |
| Transmitter power excursion | - | - | - | 2 | dBm | |
| RIN17.1OMA | RIN | - | - | -136 | dB/Hz | |
| Optical return loss tolerance | ORLT | - | - | 17.1 | dB | |
| Transmitter transition time | - | - | 17 | ps | ||
| Transmitter reflectance | TR | - | - | -26 | dB |
Table 3 – Receiver Optical Specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Wavelength | λC | 1304.5 | 1311 | 1317.5 | nm | |
| Damage Threshold | 5 | - | - | dBm | ||
| Average receive power | -7.1 | - | 4 | dBm | 1 | |
| Receive power (OMAouter) | RP | - | - | 4.2 | dBm | |
| Receiver reflectance | RR | - | - | -26 | dB |
| Parameter | Range | Accuracy | Unit | Calibration |
| Temperature | 0 to 70 | ±3 | ºC | Internal |
| Voltage | 0 to VCC | ±3% | V | Internal |
| Tx Bias Current | 0 to 100 | ±10% | mA | Internal |
| Tx Output Power | -3.1 to +4 | ±3 | dB | Internal |
| Rx Receive Power | -7.1 to +4 | ±3 | dB | Internal |
Our QSFP Fiber Transceivers are carefully packaged to ensure safe and secure delivery to our customers. Each transceiver is individually wrapped in anti-static packaging to protect it from any potential damage during transportation.
The transceivers are then placed in a sturdy and durable cardboard box, along with any necessary accessories such as user manuals and installation guides. The box is sealed with strong tape to prevent any tampering or damage during shipping.
We offer various shipping options to meet the specific needs of our customers. Our standard shipping method is through reputable couriers such as DHL, FedEx, and UPS. For customers who require expedited shipping, we also offer express delivery services at an additional cost.
For international shipments, we ensure that all necessary customs forms and documents are completed accurately and in a timely manner to facilitate smooth customs clearance.
At QSFP Fiber Transceivers, we prioritize the safe and timely delivery of our products to our customers. We strive to provide the best packaging and shipping services to ensure a hassle-free experience for our customers.
| Part No. | Application | Data Rate | Laser Source | Fiber Type |
|
LNK-QSFP28-FR1 |
100GBASE-FR1 |
100GE (53.125 GBd) |
1311nm EML |
SMF |
