Product Name: |
SFP Fiber Transceivers |
Data Rate: |
10G |
Wavelength: |
1270～1610nm |
Connector Type: |
Duplex LC |
Fiber Type: |
Single-Mode |
Distance: |
10KM |
Temperature Range: |
0℃~+70℃ |
Warranty: |
3 Years |
Product Name: |
SFP Fiber Transceivers |
Data Rate: |
10G |
Wavelength: |
1270～1610nm |
Connector Type: |
Duplex LC |
Fiber Type: |
Single-Mode |
Distance: |
10KM |
Temperature Range: |
0℃~+70℃ |
Warranty: |
3 Years |

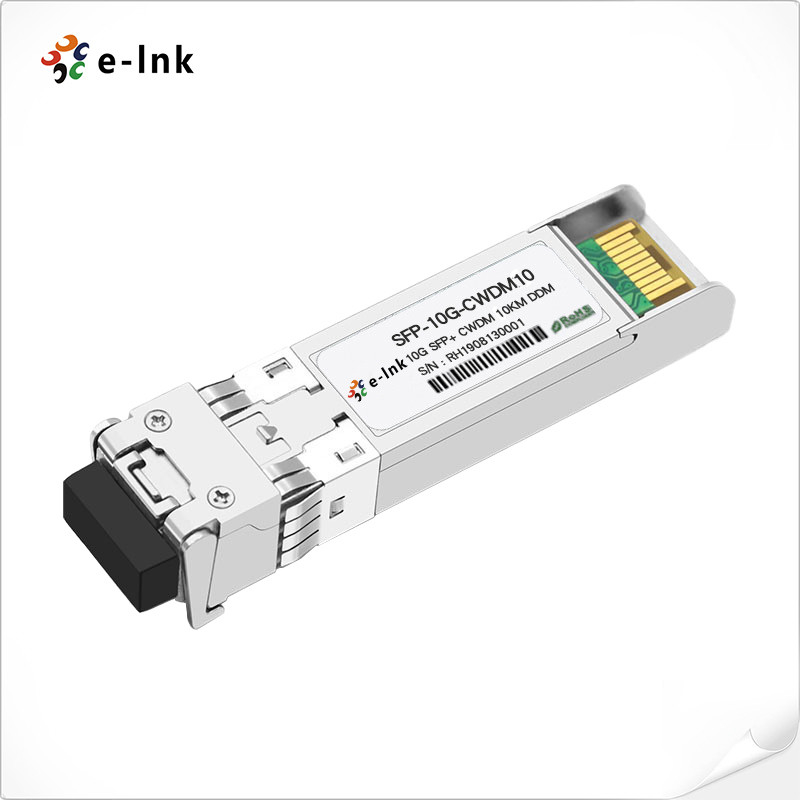

E-LINK's LNK-CSFP-10Gxx-10 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. It is designed to convert a 10Gb/s serial electrical data stream to 10Gb/s optical output signal, as well as transforming a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. Besides that, its high speed 10Gb/s electrical interface is also fully compliant with SFI specifications.
The SFP+ Module also attains a high level of performance with its 1270 ～ 1610nm CWDM DFB transmitter and a high sensitivity PIN receiver. It promises superior performance for Ethernet applications up to 10km links. On top of that, it is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. This module also contains digital diagnostics functions that can be accessed via a 2-wire serial interface specified in SFF-8472.
The transceiver adopts a standard SFP form factor and provides simple plug and play hot pluggability. It allows for easy optical port upgrades, as well as having low EMI emission.
This fiber transceiver is a hot-swappable device that supports a range of bit rates from 9.95 to 11.3 Gb/s. It connects to a Duplex LC connector, and it has a 1270-1610 nm CWDM DFB transmitter as well as a PIN photo-detector for use with single-mode fiber links up to 10km.
The transceiver is also equipped with a 2-wire interface for management, and it is compliant with the SFF 8472 digital diagnostic monitoring interface. It operates on a +3.3V power supply and has a low power consumption of less than 1.5W.
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Storage Temperature | TS | -40 | +85 | °C | |
| Case Operating Temperature | TA | 0 | 70 | °C | |
| Maximum Supply Voltage | Vcc | -0.5 | 4 | V | |
| Relative Humidity | RH | 0 | 85 | % |
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Supply Voltage | Vcc | 3.135 | 3.465 | V | ||
| Supply Current | Icc | 360 | mA | |||
| Power Consumption | P | 1.5 | W | |||
| Transmitter Section: | ||||||
| Input differential impedance | Rin | 100 | Ω | 1 | ||
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V | -0.3 | 4 | V | ||
| Differential input voltage swing | Vin,pp | 180 | 700 | mV | 2 | |
| Transmit Disable Voltage | VD | 2 | Vcc | V | 3 | |
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | V | ||
| Receiver Section: | ||||||
| Single Ended Output Voltage Tolerance | V | -0.3 | 4 | V | ||
| Rx Output Diff Voltage | Vo | 300 | 850 | mV | ||
| Rx Output Rise and Fall Time | Tr/Tf | 30 | ps | 4 | ||
| LOS Fault | VLOS fault | 2 | VccHOST | V | 5 | |
| LOS Normal | VLOS norm | Vee | Vee+0.8 | V | 5 | |
| Data Address | Parameter | Accuracy | Unit |
| 96-97 | Transceiver Internal Temperature | ±3.0 | °C |
| 100-101 | Laser Bias Current | ±10 | % |
| 100-101 | Tx Output Power | ±3.0 | dBm |
| 100-101 | Rx Input Power | ±3.0 | dBm |
| 100-101 | VCC3 Internal Supply Voltage | ±3.0 | % |
